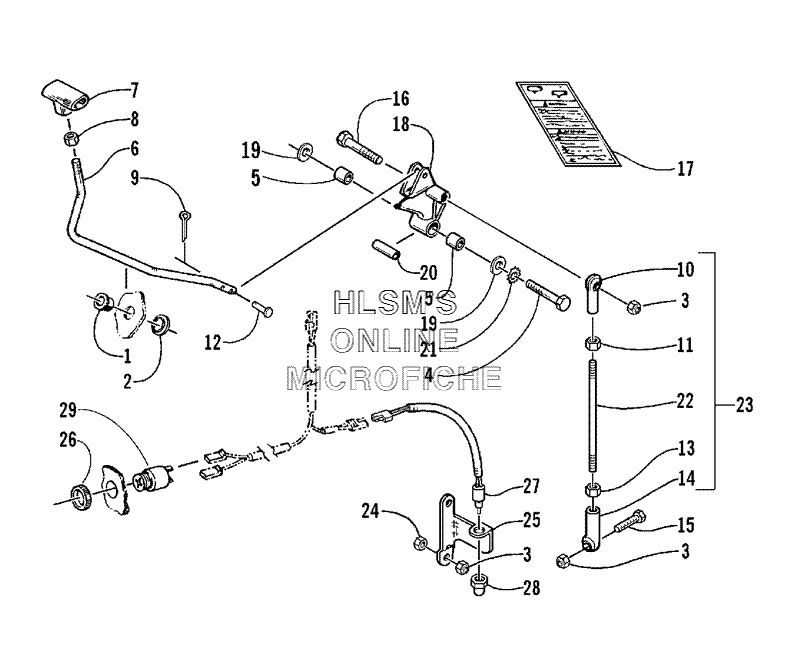

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat Bearcat 440 I - 2000 года выпуска
-
№АртикулНазвание
-
11606-086 GUIDE, SHIFT LEVERGUIDE, SHIFT LEVER
-
20123-579 NUT, PUSHNUT, PUSH
-
38040-426 NUT, LOCKNUT, LOCK
-
48012-140 SCREW, CAPSCREW, CAP
-
50602-844 BUSHINGBUSHING
-
60602-918 LEVER, REVERSELEVER, REVERSE
-
70602-851 GRIP, HANDLEGRIP, HANDLE
-
80123-005 NUTNUT
-
90117-868 PIN, COTTERPIN, COTTER
-
100602-322 ROD END - RIGHTROD END - RIGHT
-
110123-144 NUT - RIGHTNUT - RIGHT
-
120623-641 PIN, CLEVISPIN, CLEVIS
-
130623-260 NUT - LEFTNUT - LEFT
-
140602-305 ROD END - LEFTROD END - LEFT
-
158002-132 SCREW, CAPSCREW, CAP
-
168002-139 SCREW, CAPSCREW, CAP
-
172611-309 DECAL, REVERSEDECAL, REVERSE
-
180702-335 SHIFT PIVOT W/BUSHINGS (INC. 5)SHIFT PIVOT W/BUSHINGS (INC. 5)
-
198050-252 WASHERWASHER
-
200602-853 AXLEAXLE
-
218053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
220602-848 ROD, SHIFTING - LOWERROD, SHIFTING - LOWER
-
230702-290 LINKAGE, SHIFT - LOWER (INC. 10-11, 13-14, AND 22)LINKAGE, SHIFT - LOWER (INC. 10-11, 13-14, AND 22)
-
248042-426 NUTNUT
-
250602-854 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
260630-017 RING, RETAININGRING, RETAINING
-
270630-011 SWITCH, ALARMSWITCH, ALARM
-
280630-013 BOOT, SWITCHBOOT, SWITCH
-
290630-010 ALARM, REVERSEALARM, REVERSE
