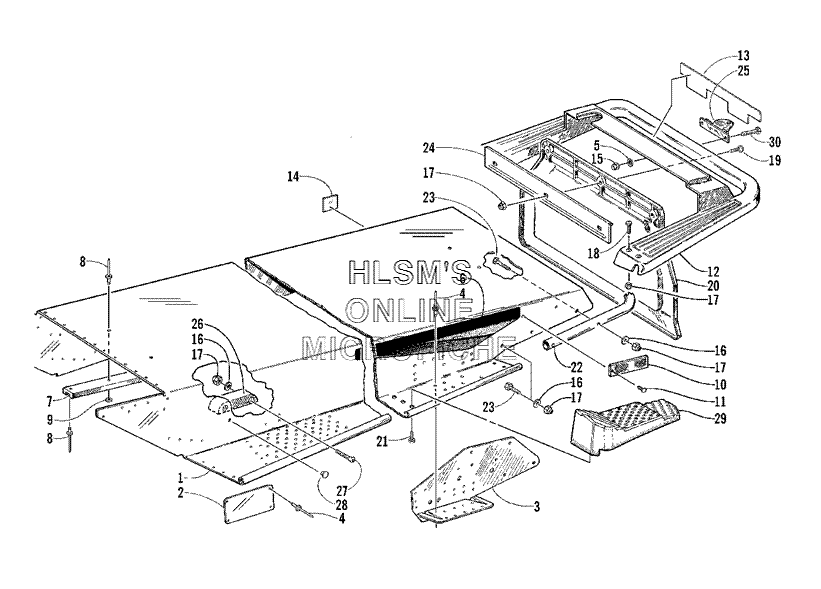

TUNNEL AND REAR BUMPER для Arctic Cat Bearcat 440 I - 2000 года выпуска
-
№АртикулНазвание
-
10718-783 TUNNEL ASSEMBLY (INC. 3)TUNNEL ASSEMBLY (INC. 3)
-
20606-554 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
30706-730 BRACKET, SUSPENSION MOUNTING - REAR RIGHTBRACKET, SUSPENSION MOUNTING - REAR RIGHT
-
30706-731 BRACKET, SUSPENSION MOUNTING - REAR LEFTBRACKET, SUSPENSION MOUNTING - REAR LEFT
-
48060-484 RIVETRIVET
-
58050-252 WASHERWASHER
-
63611-480 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
63611-481 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
70706-671 WEARSTRIP, TUNNELWEARSTRIP, TUNNEL
-
88060-488 RIVETRIVET
-
90123-149 WASHERWASHER
-
100606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
110623-269 CLIP, RETAININGCLIP, RETAINING
-
120716-223 BUMPER, REAR - W/INSERT (INC. 22)BUMPER, REAR - W/INSERT (INC. 22)
-
120716-196 BUMPER, REARBUMPER, REAR
-
133611-009 DECAL, FASTRACK SYS/WARNING (TOWING)DECAL, FASTRACK SYS/WARNING (TOWING)
-
140411-053 DECAL, CEDECAL, CE
-
158040-426 NUT, LOCKNUT, LOCK
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
188019-585 SCREW, MACHINESCREW, MACHINE
-
198017-582 SCREW, MACHINESCREW, MACHINE
-
200616-613 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
210623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
220606-674 INSERT, BUMPERINSERT, BUMPER
-
238002-046 SCREW, CAPSCREW, CAP
-
240106-914 CAP, SNOWFLAPCAP, SNOWFLAP
-
250706-497 HITCHHITCH
-
260604-497 GUIDE, TRACKGUIDE, TRACK
-
270623-268 SCREW, CAPSCREW, CAP
-
280606-983 PLUG, BODYPLUG, BODY
-
291606-478 FOOTREST, REAR - RIGHTFOOTREST, REAR - RIGHT
-
291606-479 FOOTREST, REAR - LEFTFOOTREST, REAR - LEFT
-
308002-137 SCREW, CAPSCREW, CAP
