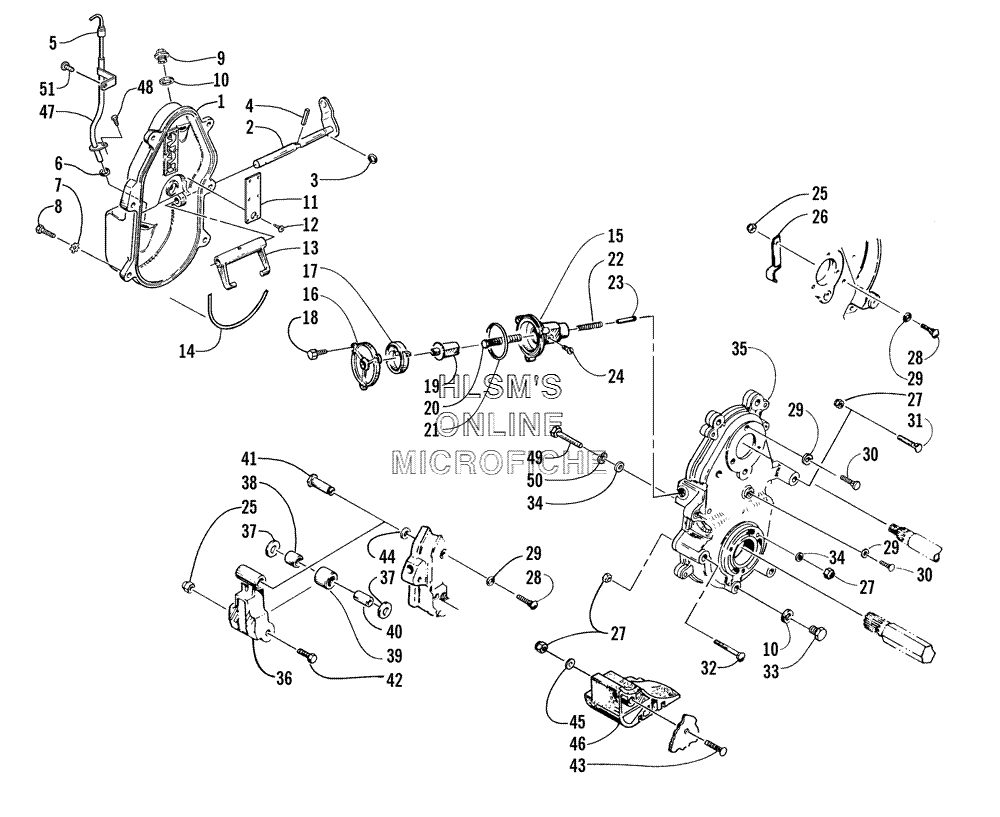

DROPCASE AND CHAIN TENSION ASSEMBLY для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
11602-010 COVER, DROPCASECOVER, DROPCASE
-
20702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
30602-021 SEAL, O-RINGSEAL, O-RING
-
40623-542 PIN, SPRINGPIN, SPRING
-
51602-012 STICK, OIL LEVELSTICK, OIL LEVEL
-
61602-013 O-RING, OIL LEVEL STICK TUBEO-RING, OIL LEVEL STICK TUBE
-
78053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
88002-134 SCREW, CAPSCREW, CAP
-
90623-293 PLUG, DRAINPLUG, DRAIN
-
100123-641 WASHER, FIBERWASHER, FIBER
-
110602-112 COVER, OIL VENTCOVER, OIL VENT
-
120623-081 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130602-085 FORK, SHIFTFORK, SHIFT
-
140602-437 SEAL, DROPCASESEAL, DROPCASE
-
150602-746 HOUSING, SCREW - CHAIN ADJUSTERHOUSING, SCREW - CHAIN ADJUSTER
-
160602-645 COVER, ADJUSTER HOUSINGCOVER, ADJUSTER HOUSING
-
170602-803 SPRING, POWER - ADJUSTER SHAFTSPRING, POWER - ADJUSTER SHAFT
-
180623-526 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190602-870 SHAFT, CHAIN ADJUSTERSHAFT, CHAIN ADJUSTER
-
200602-748 SCREW, CHAIN ADJUSTERSCREW, CHAIN ADJUSTER
-
210602-801 O-RING, COVER - CHAIN ADJUSTERO-RING, COVER - CHAIN ADJUSTER
-
220602-901 SPRING, COMPRESSIONSPRING, COMPRESSION
-
230602-804 RIVET, BUTTON HEADRIVET, BUTTON HEAD
-
240623-541 SCREW, MACHINESCREW, MACHINE
-
250623-122 NUT, LOCKNUT, LOCK
-
260602-900 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
260602-878 BRACKET, CHAIN BACKING (INTERNATIONAL)BRACKET, CHAIN BACKING (INTERNATIONAL)
-
278040-426 NUT, LOCKNUT, LOCK
-
280623-117 BOLT, RIBBEDBOLT, RIBBED
-
290607-025 O-RING, STUDO-RING, STUD
-
300123-523 BOLT, RIBBEDBOLT, RIBBED
-
318011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
328011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
330602-479 PLUG, DRAINPLUG, DRAIN
-
348050-247 WASHERWASHER
-
350702-375 DROPCASE W/STUDSDROPCASE W/STUDS
-
360602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
370623-525 WASHERWASHER
-
380602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
390702-129 ROLLER, CHAIN TIGHTENER (INC. 38)ROLLER, CHAIN TIGHTENER (INC. 38)
-
400602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
410602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
428002-045 SCREW, CAPSCREW, CAP
-
438011-137 BOLT, CARRIAGEBOLT, CARRIAGE
-
448050-222 WASHERWASHER
-
458050-242 WASHERWASHER
-
460616-964 GUARDGUARD
-
471602-011 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
480623-786 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
498002-135 SCREW, CAPSCREW, CAP
-
508051-247 WASHER, LOCKWASHER, LOCK
-
510623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
