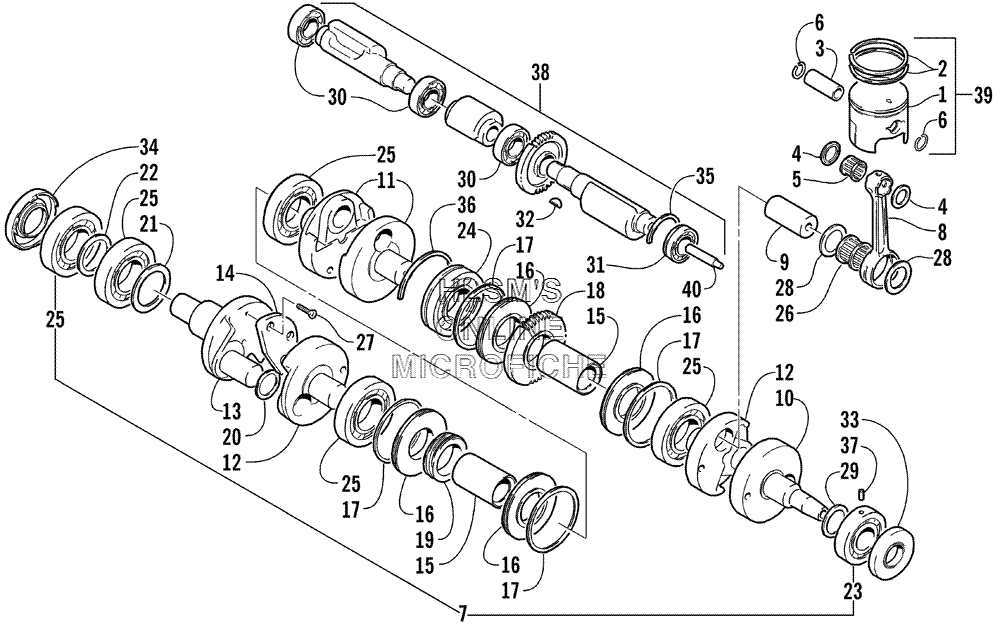

PISTON AND CRANKSHAFT для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-218 PISTONPISTON
-
23003-822 RING ASSEMBLYRING ASSEMBLY
-
33008-509 PIN, PISTONPIN, PISTON
-
43008-500 WASHERWASHER
-
53008-503 BEARING, PISTON PINBEARING, PISTON PIN
-
63005-304 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
73005-640 CRANKSHAFT ASSEMBLY (INC. 8-29)CRANKSHAFT ASSEMBLY (INC. 8-29)
-
83005-308 ROD, CONNECTINGROD, CONNECTING
-
93004-700 PIN, CRANKPIN, CRANK
-
103005-641 CRANKSHAFT - RIGHTCRANKSHAFT - RIGHT
-
113005-642 CRANKSHAFT - CENTER INNERCRANKSHAFT - CENTER INNER
-
123005-643 CRANKSHAFT - CENTER OUTERCRANKSHAFT - CENTER OUTER
-
133005-311 CRANKSHAFT - LEFTCRANKSHAFT - LEFT
-
143008-516 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153005-312 PIPE, CRANKSHAFT JOINTPIPE, CRANKSHAFT JOINT
-
163004-167 RACE, MIDDLE SEALRACE, MIDDLE SEAL
-
173004-168 RING, MIDDLE SEALRING, MIDDLE SEAL
-
183005-314 GEAR, BALANCER SHAFT DRIVEGEAR, BALANCER SHAFT DRIVE
-
193004-178 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
203008-499 WASHERWASHER
-
213004-204 WASHER, CRANK BEARINGWASHER, CRANK BEARING
-
223004-148 SHIMSHIM
-
233004-150 BEARING, CRANKSHAFT - RIGHTBEARING, CRANKSHAFT - RIGHT
-
243004-151 BEARING, CRANKSHAFT - CENTERBEARING, CRANKSHAFT - CENTER
-
253004-152 BEARING, CRANKSHAFT - LEFTBEARING, CRANKSHAFT - LEFT
-
263008-504 BEARING, CRANK PINBEARING, CRANK PIN
-
273004-372 SCREW, MACHINESCREW, MACHINE
-
283005-145 SHIMSHIM
-
293008-501 WASHERWASHER
-
303004-505 BEARING, BALANCER SHAFT - LEFTBEARING, BALANCER SHAFT - LEFT
-
313004-504 BEARING, BALANCER SHAFT - RIGHTBEARING, BALANCER SHAFT - RIGHT
-
323004-540 KEYKEY
-
333008-525 SEAL, RIGHTSEAL, RIGHT
-
343008-526 SEAL, LEFTSEAL, LEFT
-
353004-156 C-RING - BALANCER SHAFTC-RING - BALANCER SHAFT
-
363004-157 C-RING - CRANKSHAFTC-RING - CRANKSHAFT
-
373003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
383005-313 SHAFT, ASSEMBLY BALANCER (INC. 30-35)SHAFT, ASSEMBLY BALANCER (INC. 30-35)
-
393005-220 PISTON, ASSEMBLY (INC. 1-2 AND 6)PISTON, ASSEMBLY (INC. 1-2 AND 6)
-
403005-316 SHAFT, WATER PUMPSHAFT, WATER PUMP
