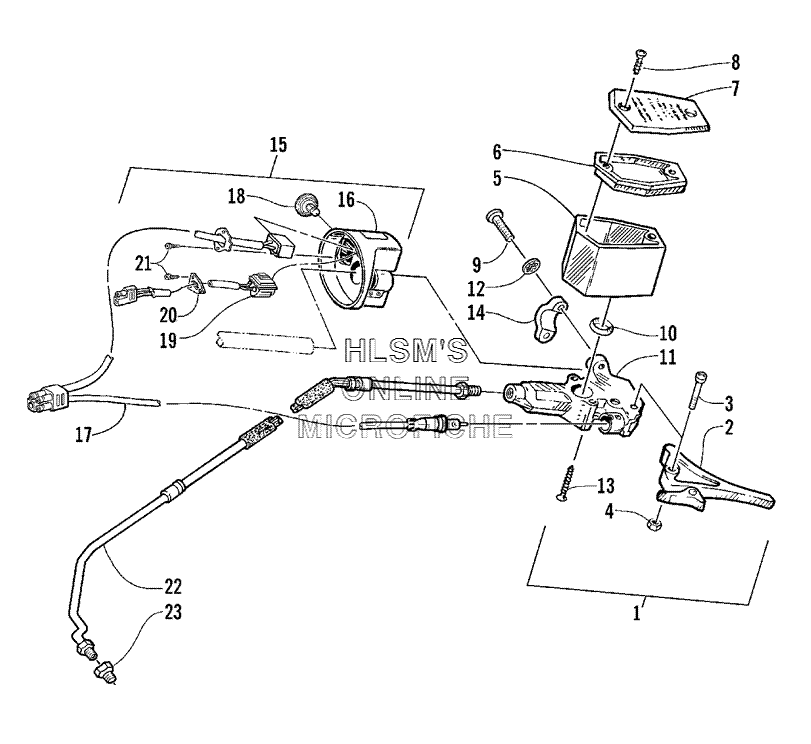

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat Powder Special 600 EFI LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
10602-943 BRAKE ASSEMBLY (INC. 2-14)BRAKE ASSEMBLY (INC. 2-14)
-
20602-711 . LEVER, BRAKE. LEVER, BRAKE
-
30623-430 . SCREW, LEVER MOUNTING. SCREW, LEVER MOUNTING
-
40623-056 . NUT, LOCK. NUT, LOCK
-
50602-740 . RESERVOIR. RESERVOIR
-
60602-741 . GASKET, COVER. GASKET, COVER
-
70602-742 . COVER, RESERVOIR. COVER, RESERVOIR
-
80623-506 . SCREW, COVER. SCREW, COVER
-
90623-613 . SCREW, CAP. SCREW, CAP
-
100602-587 . O-RING. O-RING
-
128052-212 . WASHER, LOCK. WASHER, LOCK
-
130623-432 . SCREW, MASTER CYLINDER MOUNTING. SCREW, MASTER CYLINDER MOUNTING
-
140602-907 . CLAMP, MASTER CYLINDER. CLAMP, MASTER CYLINDER
-
-0638-315 FLUID, BRAKE - HIGH TEMPERATUREFLUID, BRAKE - HIGH TEMPERATURE
-
150609-406 CONTROL, DIMMER - ASSEMBLY (INC. 16-19)CONTROL, DIMMER - ASSEMBLY (INC. 16-19)
-
160609-322 . HOUSING, DIMMER CONTROL. HOUSING, DIMMER CONTROL
-
170609-267 . SWITCH, DIMMER AND BRAKE - ASSEMBLY. SWITCH, DIMMER AND BRAKE - ASSEMBLY
-
180609-383 . SWITCH, HI/LO HANDWARMER - ASSEMBLY. SWITCH, HI/LO HANDWARMER - ASSEMBLY
-
190609-312 . SCREW, SELF-TAPPING. SCREW, SELF-TAPPING
-
200602-944 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
210602-590 FITTING, ADAPTERFITTING, ADAPTER
-
220609-378 PLATE, COVERPLATE, COVER
