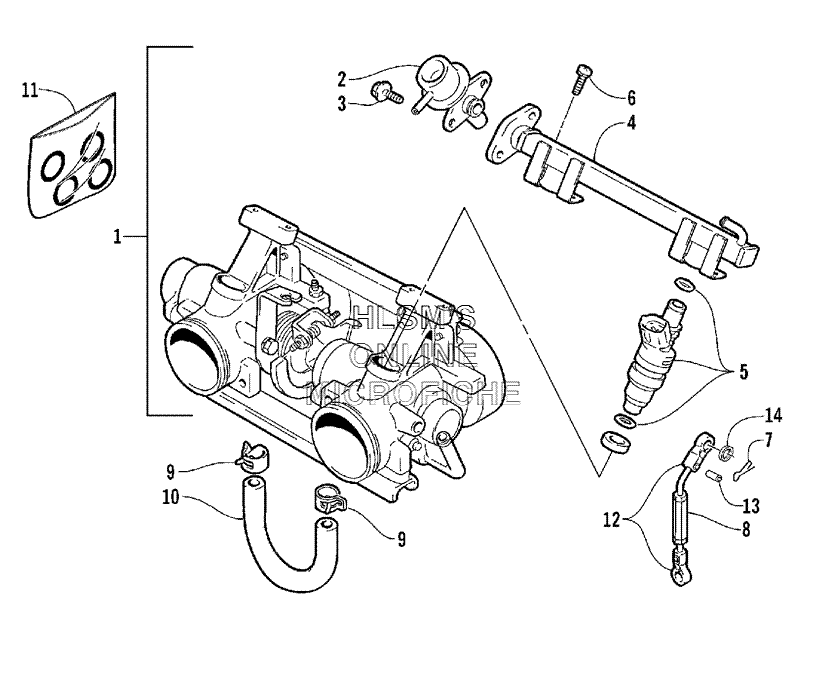

THROTTLE BODY ASSEMBLY для Arctic Cat Powder Special 600 EFI LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
13005-678 THROTTLE BODY - ASSEMBLY CIRCLETHROTTLE BODY - ASSEMBLY CIRCLE
-
13005-679 THROTTLE BODY - ASSEMBLY SQUARETHROTTLE BODY - ASSEMBLY SQUARE
-
13005-680 THROTTLE BODY - ASSEMBLY TRIANGLETHROTTLE BODY - ASSEMBLY TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 SCREW, CAPSCREW, CAP
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-705 INJECTOR, FUEL - ASSEMBLY CIRCLEINJECTOR, FUEL - ASSEMBLY CIRCLE
-
53005-690 INJECTOR, FUEL - ASSEMBLY SQUAREINJECTOR, FUEL - ASSEMBLY SQUARE
-
53005-706 INJECTOR, FUEL - ASSEMBLY TRIANGLEINJECTOR, FUEL - ASSEMBLY TRIANGLE
-
63005-320 SCREW, CAPSCREW, CAP
-
73005-694 PIN, CLIPPIN, CLIP
-
83005-693 ROD, OIL PUMP CONTROLROD, OIL PUMP CONTROL
-
93004-193 CLAMP, HOSECLAMP, HOSE
-
103005-103 HOSEHOSE
-
113005-692 O-RING SETO-RING SET
-
123005-737 END, RODEND, ROD
-
133005-738 PIN, SPRINGPIN, SPRING
-
143005-807 WASHER, PLASTICWASHER, PLASTIC
