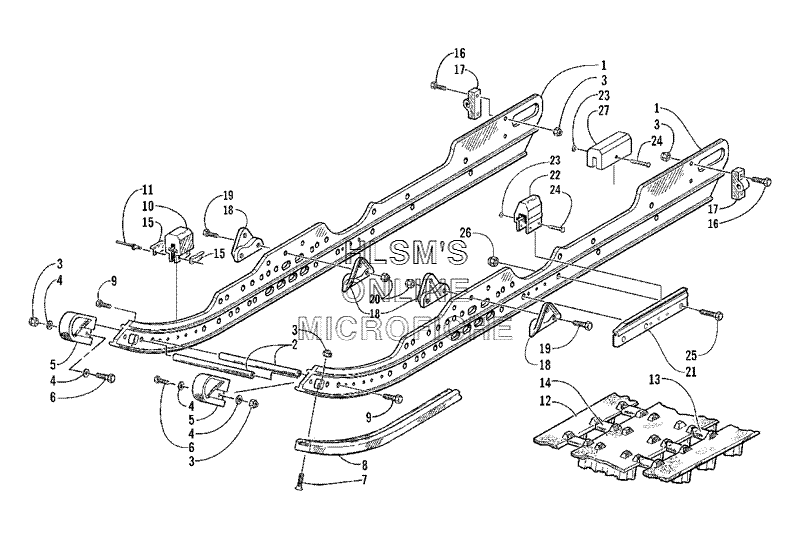

SLIDE RAIL AND TRACK ASSEMBLY (LE) для Arctic Cat Powder Special 600 EFI LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
-7995-005 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
11604-606 RAIL, FORMED - STAMPEDRAIL, FORMED - STAMPED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAIL - BLACKWEARSTRIP, SLIDE RAIL - BLACK
-
98012-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVET, SOLIDRIVET, SOLID
-
126799-842 TRACK ASSEMBLY (INC. 13-14)TRACK ASSEMBLY (INC. 13-14)
-
130602-488 . CLIP, GUIDE. CLIP, GUIDE
-
140602-541 . CLIP, WEAR. CLIP, WEAR
-
150604-967 BRACKET, RETAININGBRACKET, RETAINING
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
180604-913 BRACKET, MOUNTING - FRONT ARMBRACKET, MOUNTING - FRONT ARM
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUT, LOCKNUT, LOCK
-
211604-647 BRACE, RAIL - RIGHTBRACE, RAIL - RIGHT
-
211604-489 BRACE, RAIL - LEFTBRACE, RAIL - LEFT
-
221604-487 PAD, SHOCKPAD, SHOCK
-
230623-773 NUT, PUSHNUT, PUSH
-
240623-772 RIVET, SOLIDRIVET, SOLID
-
258002-222 SCREW, CAPSCREW, CAP
-
268041-486 NUT, LOCKNUT, LOCK
-
271604-607 PAD, SHOCKPAD, SHOCK
