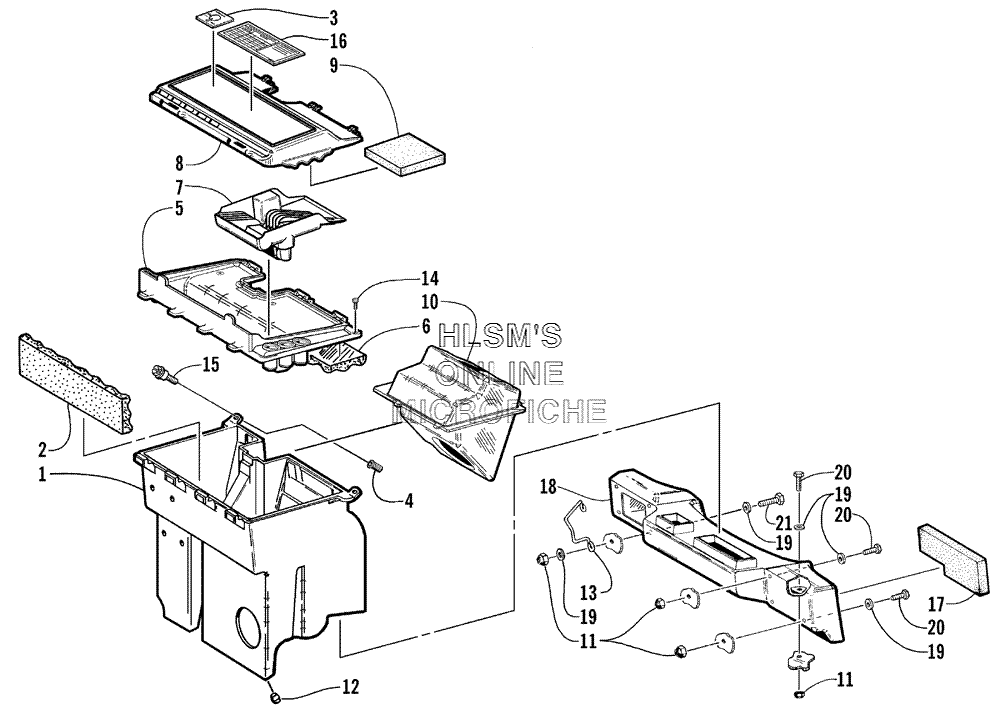

AIR SILENCER ASSEMBLY для Arctic Cat Z 370 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10770-337 SILENCER, AIR, ASSEMBLYSILENCER, AIR, ASSEMBLY
-
20617-254 FOAM, AIR SILENCER (FRONT)FOAM, AIR SILENCER (FRONT)
-
30611-978 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
-
40623-779 INSERTINSERT
-
51670-050 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-251 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
70670-826 TRAY, TOOLTRAY, TOOL
-
81670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
90617-294 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
101670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
118040-366 NUT, LOCKNUT, LOCK
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
130645-269 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
140623-770 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
163611-588 DECAL, JET CHARTDECAL, JET CHART
-
170617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
180670-787 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
