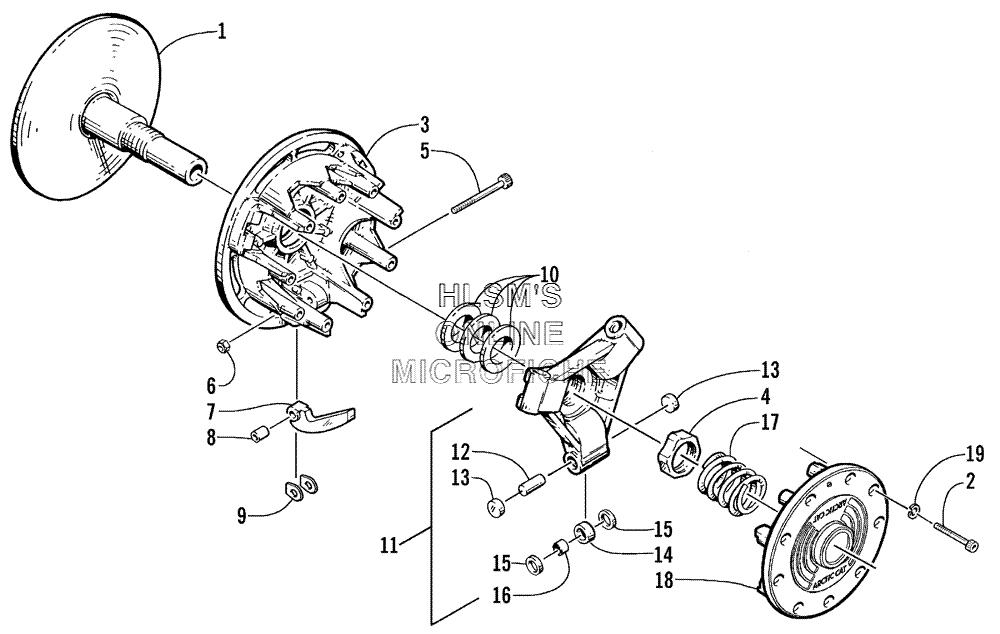

DRIVE CLUTCH для Arctic Cat Z 370 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
-0725-265 DRIVE CLUTCH ASSEMBLYDRIVE CLUTCH ASSEMBLY
-
10646-274 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20623-596 SCREW, MACHINESCREW, MACHINE
-
30746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-502 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-602 ARM, CAM (INC. 8) (OVER 5, 000 FT ALT.)ARM, CAM (INC. 8) (OVER 5, 000 FT ALT.)
-
80646-160 . BEARING, CAM ARM. BEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-090 SPIDER ASSEMBLY (INC. 12, 16)SPIDER ASSEMBLY (INC. 12, 16)
-
120646-270 . PIN, SPIDER. PIN, SPIDER
-
130646-293 . BUTTON, SPIDER. BUTTON, SPIDER
-
140746-067 . ROLLER, SPIDER (INC. 16). ROLLER, SPIDER (INC. 16)
-
150646-294 . WASHER, ROLLER. WASHER, ROLLER
-
160646-272 . BEARING, ROLLER. BEARING, ROLLER
-
170646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN)SPRING, DRIVE CLUTCH (YELLOW/GREEN)
-
180746-086 COVERCOVER
-
198051-212 WASHER, LOCKWASHER, LOCK
