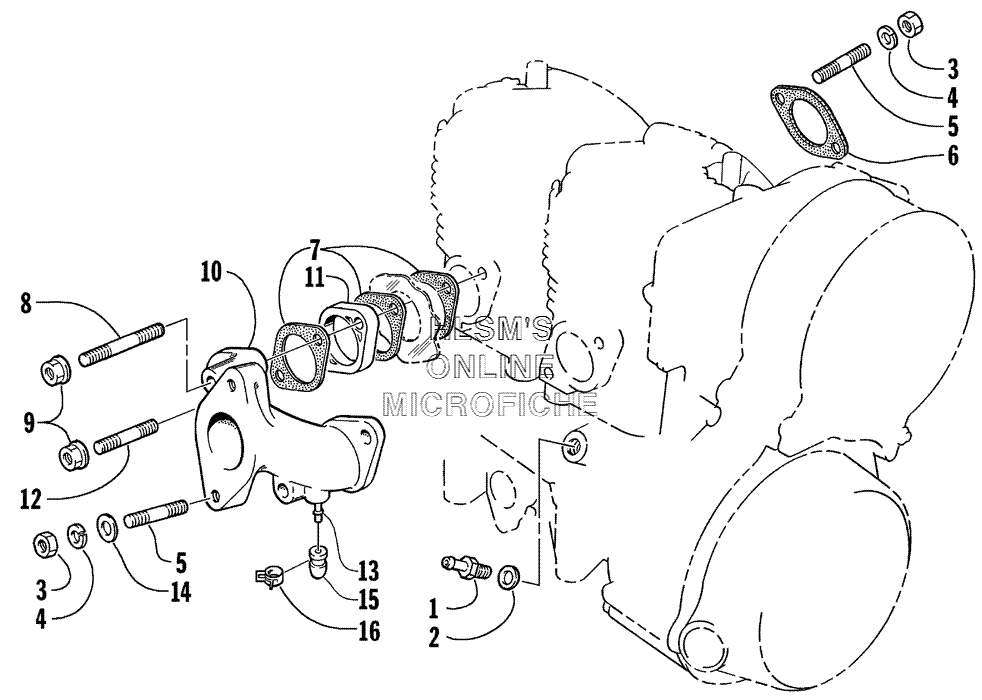

INTAKE ASSEMBLY для Arctic Cat Z 370 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13002-040 UNION, HOSEUNION, HOSE
-
23002-276 GASKETGASKET
-
33004-334 NUTNUT
-
43004-280 WASHER, LOCKWASHER, LOCK
-
53004-279 BOLT, STUDBOLT, STUD
-
63003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
73005-007 GASKET, INTAKEGASKET, INTAKE
-
83004-575 BOLT, STUDBOLT, STUD
-
93004-351 NUT W/WASHERNUT W/WASHER
-
103003-552 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
113003-554 INSULATOR, INTAKE MANIFOLDINSULATOR, INTAKE MANIFOLD
-
123004-300 BOLT, STUDBOLT, STUD
-
133003-597 NOZZLE, OIL INJECTIONNOZZLE, OIL INJECTION
-
143423-204 WASHERWASHER
-
153004-828 CAP, NOZZLECAP, NOZZLE
-
163008-037 CLAMPCLAMP
