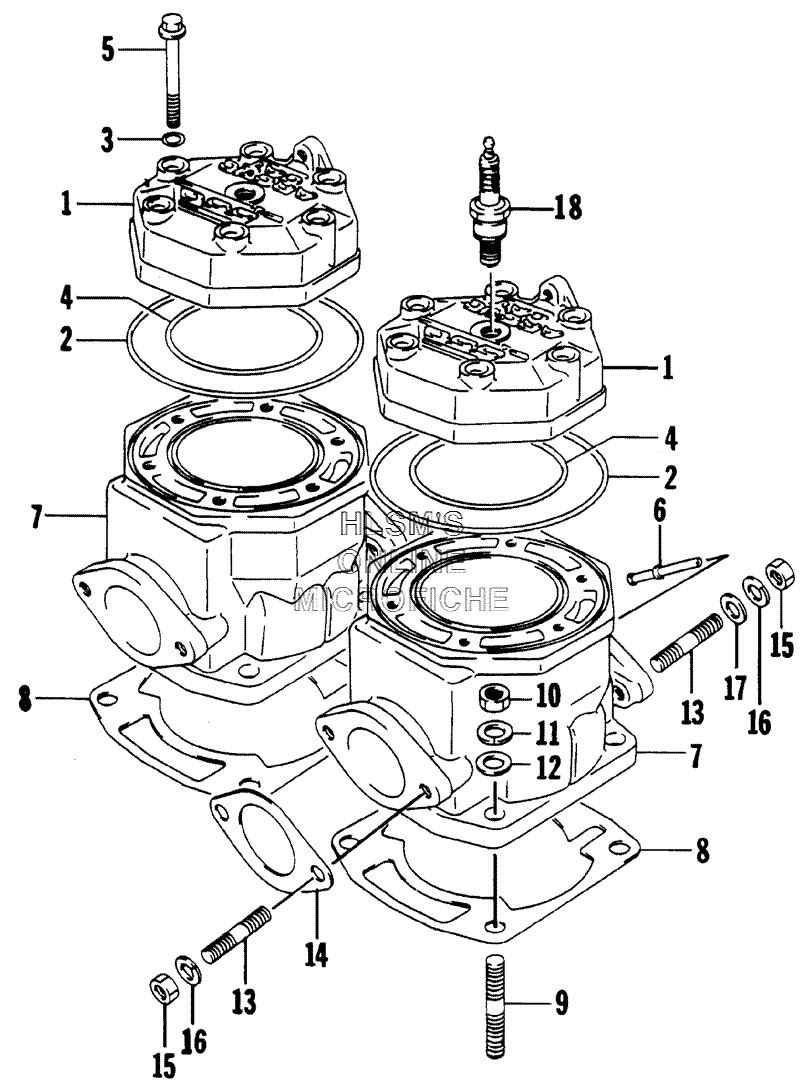

CYLINDER AND HEAD ASSY. для Arctic Cat ZL 580 EFI ESR - 2000 года выпуска
-
№АртикулНазвание
-
13004-064 CYLINDER HEADCYLINDER HEAD
-
23003-765 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43003-764 O-RING, HEAD INNERO-RING, HEAD INNER
-
53004-370 SCREW, CAPSCREW, CAP
-
63003-597 NOZZLE, OILNOZZLE, OIL
-
73004-396 CYLINDER (INC. 6)CYLINDER (INC. 6)
-
83003-763 GASKET, CYLINDERGASKET, CYLINDER
-
93005-207 STUD BOLT, CYLINDERSTUD BOLT, CYLINDER
-
103004-989 NUT, CYLINDERNUT, CYLINDER
-
113004-362 WASHER, LOCKWASHER, LOCK
-
123004-278 WASHERWASHER
-
133004-279 STUD, BOLTSTUD, BOLT
-
143003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
153004-334 NUT, EXHAUSTNUT, EXHAUST
-
163004-280 WASHER, LOCKWASHER, LOCK
-
173423-204 WASHERWASHER
-
180217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
