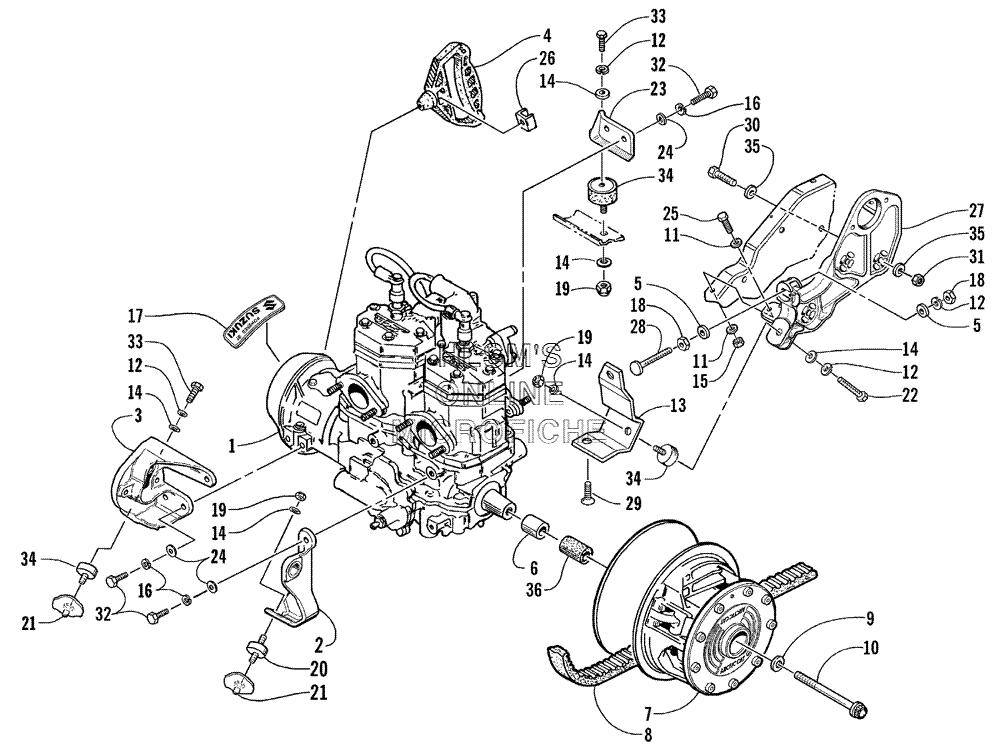

ENGINE AND RELATED PARTS для Arctic Cat ZL 580 EFI ESR - 2000 года выпуска
-
№АртикулНазвание
-
10662-273 ENGINE, AD58L4 W/O EFI COMPONENTSENGINE, AD58L4 W/O EFI COMPONENTS
-
20745-111 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
30745-106 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
58050-282 WASHERWASHER
-
60646-107 SPACER, ALUMINUMSPACER, ALUMINUM
-
70725-301 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
100623-206 BOLT, CLUTCHBOLT, CLUTCH
-
118050-222 WASHERWASHER
-
128051-277 WASHER, LOCKWASHER, LOCK
-
130608-235 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
148050-277 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
168051-242 WASHER, LOCKWASHER, LOCK
-
171611-588 DECAL, "POWERED BY"DECAL, "POWERED BY"
-
188042-486 NUTNUT
-
198040-486 NUT, LOCKNUT, LOCK
-
200608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
210623-699 INSERT, THREADEDINSERT, THREADED
-
228002-226 SCREW, CAPSCREW, CAP
-
230708-070 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
248050-242 WASHERWASHER
-
258002-041 SCREW, CAPSCREW, CAP
-
260606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
270708-054 BRACKET, ENGINE MOUNTING/ BEARING SUPPORTBRACKET, ENGINE MOUNTING/ BEARING SUPPORT
-
280608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
300623-628 SCREW, CAPSCREW, CAP
-
310623-026 NUT, LOCKNUT, LOCK
-
328013-132 SCREW, CAPSCREW, CAP
-
338002-222 SCREW, CAPSCREW, CAP
-
340608-217 MOUNT, ENGINEMOUNT, ENGINE
-
350623-044 WASHERWASHER
-
360646-106 SPACER, URETHANESPACER, URETHANE
