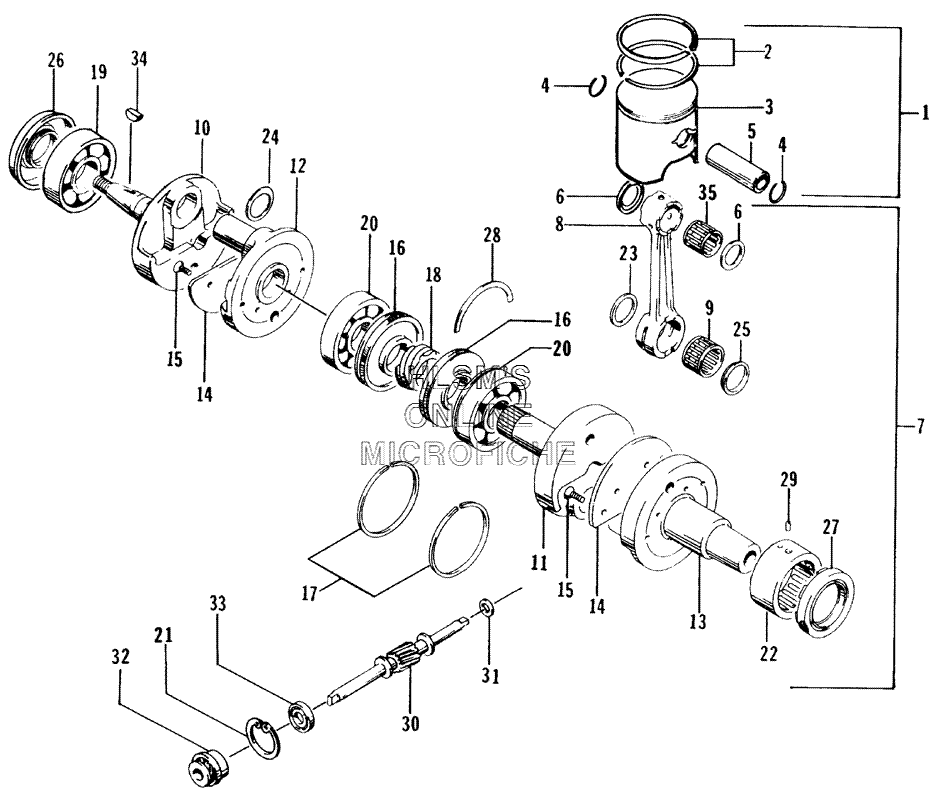

PISTON AND CRANKSHAFT для Arctic Cat ZL 580 EFI ESR - 2000 года выпуска
-
№АртикулНазвание
-
13004-075 PISTON ASSY. (INC. 2, 4)PISTON ASSY. (INC. 2, 4)
-
23004-067 . RING ASSY.. RING ASSY.
-
33005-436 . PISTON. PISTON
-
43003-439 . CIRCLIP, PISTON PIN. CIRCLIP, PISTON PIN
-
53003-767 PIN, PISTONPIN, PISTON
-
63005-209 WASHERWASHER
-
73005-230 CRANKSHAFT ASSY. (INC. 8, 20 AND 22, 25)CRANKSHAFT ASSY. (INC. 8, 20 AND 22, 25)
-
83005-112 . ROD, CONNECTING. ROD, CONNECTING
-
93003-784 . BEARING, CRANK PIN. BEARING, CRANK PIN
-
103003-812 . CRANKSHAFT (RIGHT). CRANKSHAFT (RIGHT)
-
113005-201 . CRANKSHAFT (MIDDLE). CRANKSHAFT (MIDDLE)
-
123005-232 . WHEEL, CRANK. WHEEL, CRANK
-
133005-231 . CRANKSHAFT (LEFT). CRANKSHAFT (LEFT)
-
143003-815 . BALANCER. BALANCER
-
153004-372 . SCREW, MACHINE. SCREW, MACHINE
-
163004-698 . RACE (MIDDLE) SEAL. RACE (MIDDLE) SEAL
-
173003-817 . RING. RING
-
183005-202 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
193005-210 . BEARING, CRANKSHAFT (RIGHT). BEARING, CRANKSHAFT (RIGHT)
-
203003-164 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
213004-009 CIRCLIPCIRCLIP
-
223003-805 BEARING, CRANKSHAFT (LEFT)BEARING, CRANKSHAFT (LEFT)
-
233003-782 WASHERWASHER
-
243003-783 WASHERWASHER
-
253003-933 WASHERWASHER
-
263005-188 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
273003-759 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
283003-216 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-324 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
343004-540 KEYKEY
-
353003-433 BEARING, PISTON PINBEARING, PISTON PIN
