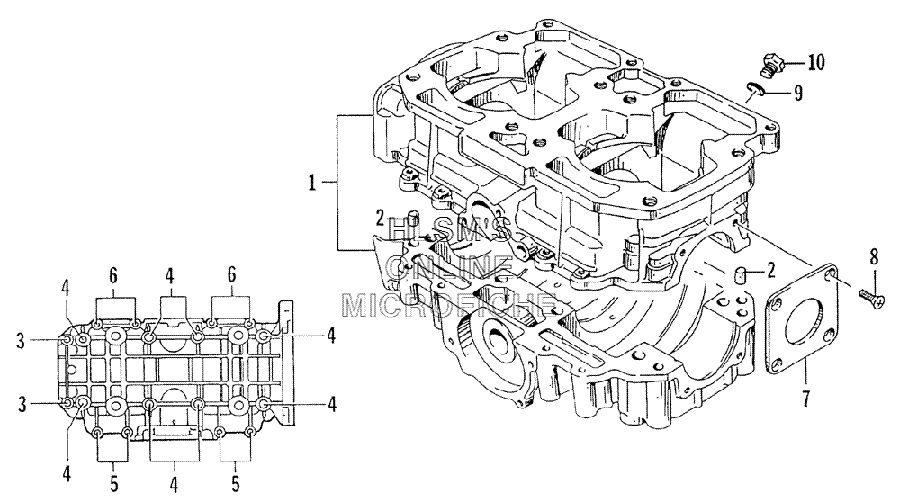

CRANKCASE ASSY. для Arctic Cat ZR 700 - LE (Reverse) - 2000 года выпуска
-
№АртикулНазвание
-
13005-482 CRANKCASE ASSY. (INC. 2, 6)CRANKCASE ASSY. (INC. 2, 6)
-
23002-012 . PIN, DOWEL. PIN, DOWEL
-
33004-881 . BOLT. BOLT
-
43005-411 . BOLT. BOLT
-
53423-367 . BOLT. BOLT
-
63423-007 . BOLT. BOLT
-
73004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-377 SCREWSCREW
-
93002-276 GASKETGASKET
-
103002-028 PLUG, CRANKCASEPLUG, CRANKCASE
