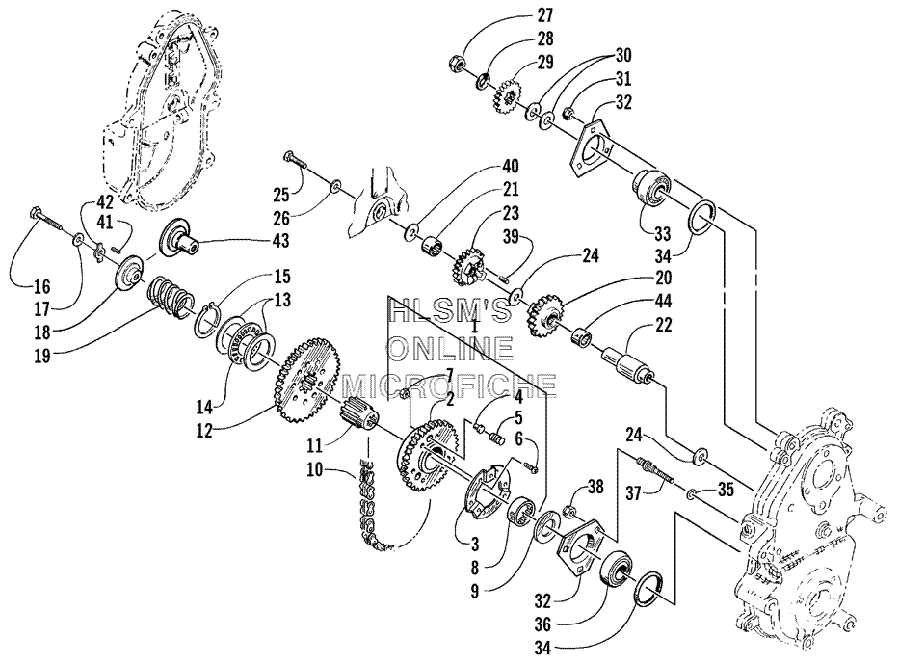

DRIVE/REVERSE DROPCASE ASSY. (LE-R) для Arctic Cat ZR 700 - LE (Reverse) - 2000 года выпуска
-
№АртикулНазвание
-
-1639-481 REVERSE OPTIONAL KIT LOW ALT.REVERSE OPTIONAL KIT LOW ALT.
-
-1639-477 REVERSE OPTIONAL KIT HIGH ALT.REVERSE OPTIONAL KIT HIGH ALT.
-
10702-187 SPROCKET ASSY. (40 TEETH) (INC. 2, 6 AND 8)SPROCKET ASSY. (40 TEETH) (INC. 2, 6 AND 8)
-
10702-170 SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)
-
30602-144 . RETAINER, SPRING. RETAINER, SPRING
-
40602-133 . PIN, SLIP. PIN, SLIP
-
50602-138 . SPRING, COMPRESSION. SPRING, COMPRESSION
-
68007-397 . SCREW, MACHINE. SCREW, MACHINE
-
60623-182 . SCREW, MACHINE (OVER 5, 000 FT ALT.). SCREW, MACHINE (OVER 5, 000 FT ALT.)
-
70123-430 . NUT, LOCK (OVER 5, 000 FT ALT.). NUT, LOCK (OVER 5, 000 FT ALT.)
-
80602-016 . BEARING. BEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-042 CHAIN, 72PCHAIN, 72P
-
101602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 . WASHER, THRUST. WASHER, THRUST
-
140602-022 . BEARING, THRUST. BEARING, THRUST
-
150602-024 . RING, RETAINING. RING, RETAINING
-
168002-231 SCREW, CAPSCREW, CAP
-
178050-272 WASHERWASHER
-
180702-372 RETAINER, SHAFT (INC. 41)RETAINER, SHAFT (INC. 41)
-
190602-028 SPRING, RETURNSPRING, RETURN
-
200602-899 IDLER, REVERSE ASSY. (22 TEETH) (INC. 44)IDLER, REVERSE ASSY. (22 TEETH) (INC. 44)
-
200602-871 IDLER, REVERSE ASSY. (24 TEETH) (INC. 44) (OVER 5, 000 FT ALT.)IDLER, REVERSE ASSY. (24 TEETH) (INC. 44) (OVER 5, 000 FT ALT.)
-
211602-045 BEARINGBEARING
-
220602-872 SHAFT, REVERSESHAFT, REVERSE
-
230702-365 IDLER, REVERSE ASSY. (19 TEETH) (INC. 21)IDLER, REVERSE ASSY. (19 TEETH) (INC. 21)
-
240602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
258002-130 SCREW, CAPSCREW, CAP
-
268050-242 WASHERWASHER
-
270623-465 NUT, LOCKNUT, LOCK
-
280623-231 WASHER, SPRINGWASHER, SPRING
-
290602-452 SPROCKET (23 TEETH) (LOW ALT.)SPROCKET (23 TEETH) (LOW ALT.)
-
290602-444 SPROCKET (19 TEETH) (HIGH ALT.)SPROCKET (19 TEETH) (HIGH ALT.)
-
300123-694 WASHERWASHER
-
318041-426 NUT, LOCKNUT, LOCK
-
320602-198 PLATE, FLANGEPLATE, FLANGE
-
331602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
340107-003 SEAL, O-RINGSEAL, O-RING
-
350607-025 O-RING, STUDO-RING, STUD
-
361602-051 BEARING, 1 IN.BEARING, 1 IN.
-
370623-317 STUD, RIBBEDSTUD, RIBBED
-
388040-426 NUT, LOCKNUT, LOCK
-
390602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
401602-044 WASHER, THRUSTWASHER, THRUST
-
418070-153 PIN, SPRINGPIN, SPRING
-
421602-046 WASHER, TAB LOCKWASHER, TAB LOCK
-
430602-783 RETAINER, SHAFT EXTENSIONRETAINER, SHAFT EXTENSION
-
440602-205 BEARING, CAGEDBEARING, CAGED
