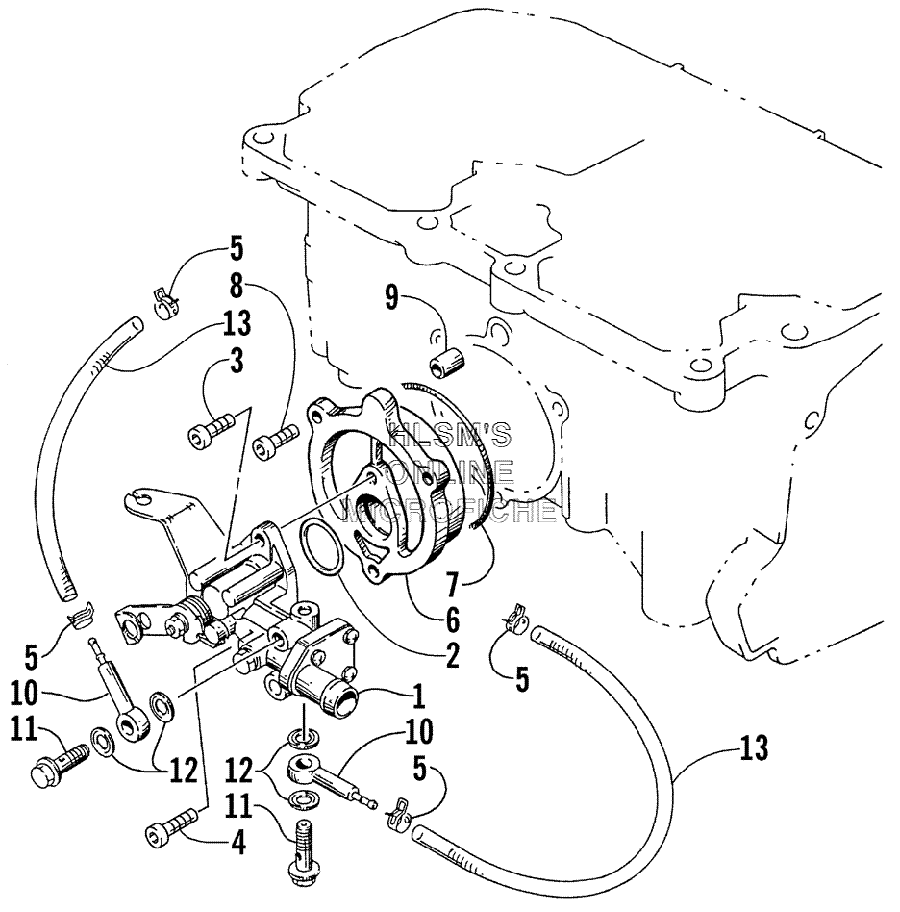

OIL PUMP для Arctic Cat ZR 700 - LE (Reverse) - 2000 года выпуска
-
№АртикулНазвание
-
13005-484 OIL PUMP ASSY.OIL PUMP ASSY.
-
23008-030 O-RINGO-RING
-
33004-423 SCREW, MACHINESCREW, MACHINE
-
43004-432 SCREW, MACHINESCREW, MACHINE
-
53008-037 CLAMP, HOSECLAMP, HOSE
-
63005-518 RETAINERRETAINER
-
73004-529 O-RINGO-RING
-
83004-402 SCREW, MACHINESCREW, MACHINE
-
93002-012 PIN, RETAINERPIN, RETAINER
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113004-346 UNIONUNION
-
123402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
133008-035 HOSE, OIL PUMPHOSE, OIL PUMP
