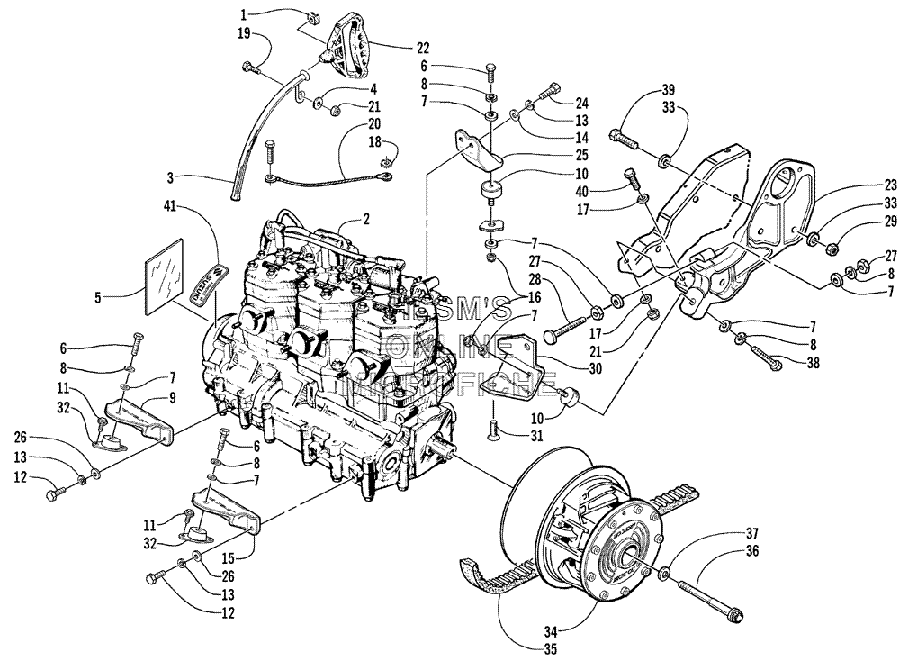

ENGINE AND RELATED PARTS для Arctic Cat ZRT 800 (Green) - 2000 года выпуска
-
№АртикулНазвание
-
10606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
20662-249 ENGINE AA80L6ENGINE AA80L6
-
30708-089 GUIDE, RECOIL ROPEGUIDE, RECOIL ROPE
-
48050-217 WASHERWASHER
-
50706-990 FOILFOIL
-
68002-222 SCREW, CAPSCREW, CAP
-
78050-277 WASHERWASHER
-
88051-277 WASHER, LOCKWASHER, LOCK
-
90708-062 BRACKET, ENGINE MOUNT (RIGHT/ FRONT)BRACKET, ENGINE MOUNT (RIGHT/ FRONT)
-
100608-251 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
110623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
128012-132 SCREW, CAPSCREW, CAP
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148050-242 WASHERWASHER
-
150708-063 BRACKET, ENGINE MOUNT (LEFT/FRONT)BRACKET, ENGINE MOUNT (LEFT/FRONT)
-
168040-486 NUT, LOCKNUT, LOCK
-
178050-222 WASHERWASHER
-
188053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
198002-045 SCREW, CAPSCREW, CAP
-
200686-099 WIRE, ENGINE GROUNDWIRE, ENGINE GROUND
-
218040-366 NUT, LOCKNUT, LOCK
-
220636-363 HANDLE, RECOILHANDLE, RECOIL
-
230708-083 BRACKET, ENGINE MOUNTING/ BEARING SUPPORTBRACKET, ENGINE MOUNTING/ BEARING SUPPORT
-
248012-131 SCREW, CAPSCREW, CAP
-
250708-064 BRACKET, ENGINE MOUNT (RIGHT/REAR)BRACKET, ENGINE MOUNT (RIGHT/REAR)
-
268050-252 WASHERWASHER
-
278042-486 NUTNUT
-
280608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-026 NUT, LOCKNUT, LOCK
-
300708-071 BRACKET, ENGINE (LEFT/REAR)BRACKET, ENGINE (LEFT/REAR)
-
310623-095 SCREW, MACHINESCREW, MACHINE
-
320608-090 MOUNT, ENGINEMOUNT, ENGINE
-
330623-044 WASHERWASHER
-
340725-310 CLUTCH, DRIVECLUTCH, DRIVE
-
350627-020 BELT, DRIVEBELT, DRIVE
-
360623-804 BOLT, CLUTCHBOLT, CLUTCH
-
370623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
388002-226 SCREW, CAPSCREW, CAP
-
390623-628 SCREW, CAPSCREW, CAP
-
408002-041 SCREW, CAPSCREW, CAP
-
411611-588 DECAL, ENGINEDECAL, ENGINE
