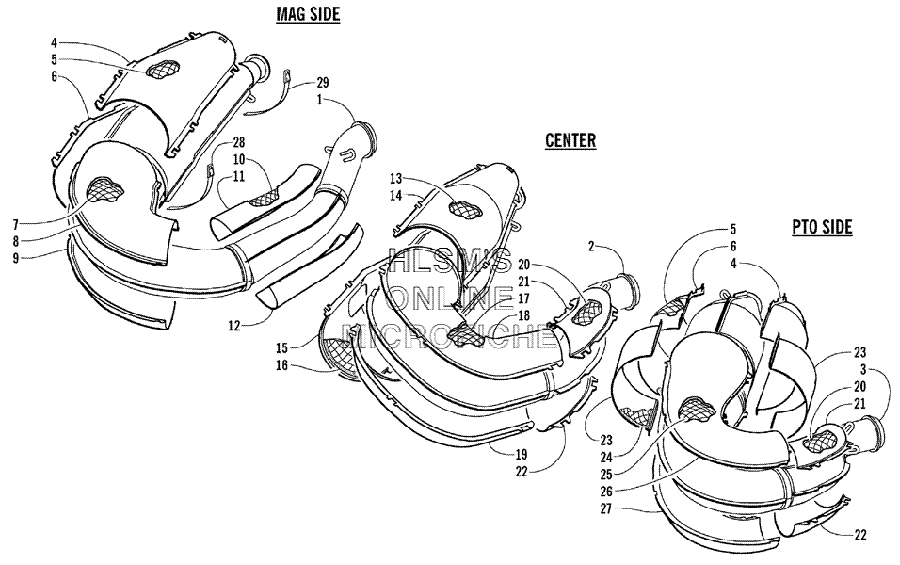

EXPANSION CHAMBER ASSY. для Arctic Cat ZRT 800 (Green) - 2000 года выпуска
-
№АртикулНазвание
-
10712-342 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
20712-343 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30712-344 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
40612-857 COVERCOVER
-
50612-904 PACKINGPACKING
-
60612-856 COVERCOVER
-
71612-052 PACKINGPACKING
-
81612-050 COVERCOVER
-
91612-049 COVERCOVER
-
100612-901 PACKINGPACKING
-
110612-850 COVERCOVER
-
120612-851 COVERCOVER
-
130612-387 WRAPWRAP
-
140612-911 COVERCOVER
-
150612-910 COVERCOVER
-
160612-427 PACKINGPACKING
-
171612-051 PACKINGPACKING
-
181612-047 COVERCOVER
-
191612-048 COVERCOVER
-
200612-902 PACKINGPACKING
-
210612-852 COVERCOVER
-
220612-853 COVERCOVER
-
230612-423 COVERCOVER
-
240612-428 PACKINGPACKING
-
250612-903 PACKINGPACKING
-
260612-854 COVERCOVER
-
270612-855 COVERCOVER
-
280624-180 TIE, CABLE, 20.5 IN.TIE, CABLE, 20.5 IN.
-
290624-181 TIE, CABLE, 14.3 IN.TIE, CABLE, 14.3 IN.
