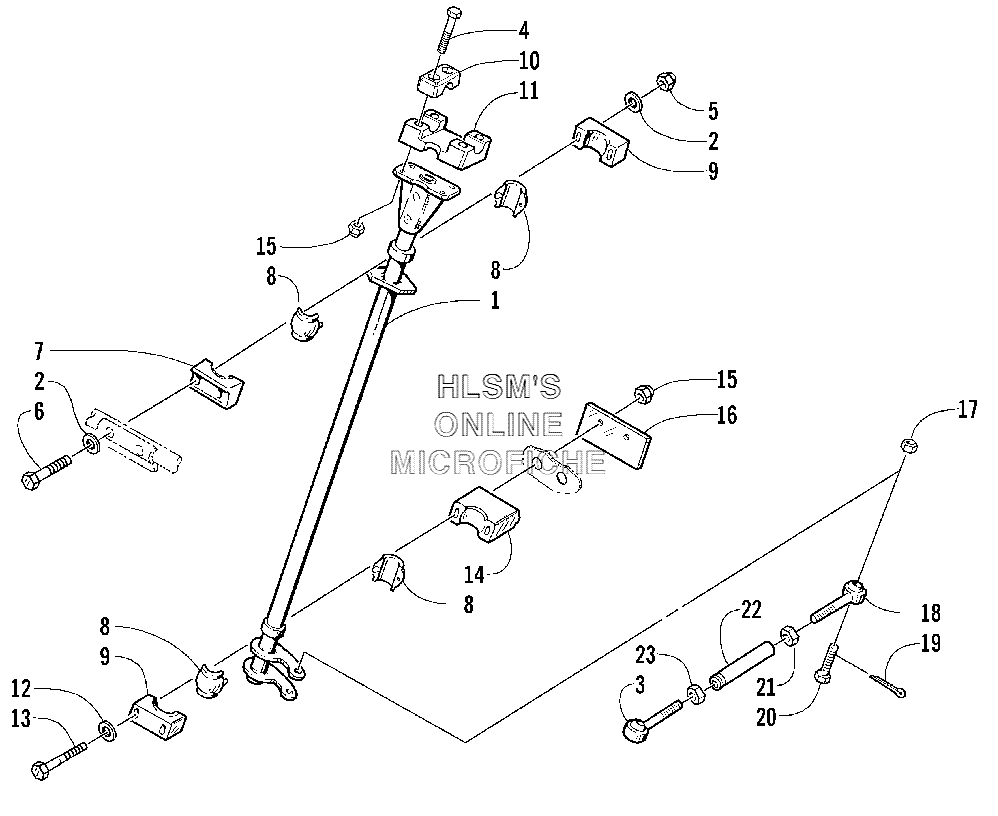

STEERING POST ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10705-377 POST, STEERINGPOST, STEERING
-
28050-217 WASHERWASHER
-
30605-202 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
48002-137 SCREW, CAPSCREW, CAP
-
58040-366 NUT, LOCKNUT, LOCK
-
68002-052 SCREW, CAPSCREW, CAP
-
70605-147 HOUSING, BEARING (UPPER)HOUSING, BEARING (UPPER)
-
80405-020 BEARING, HALFBEARING, HALF
-
90605-171 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
110605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
128050-247 WASHERWASHER
-
130623-224 SCREW, CAPSCREW, CAP
-
140605-146 HOUSING, BEARING (LOWER)HOUSING, BEARING (LOWER)
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-217 PLATE, BACKINGPLATE, BACKING
-
170623-026 NUT, LOCKNUT, LOCK
-
180605-203 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-436 SCREW, CAPSCREW, CAP
-
210123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
220605-251 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
