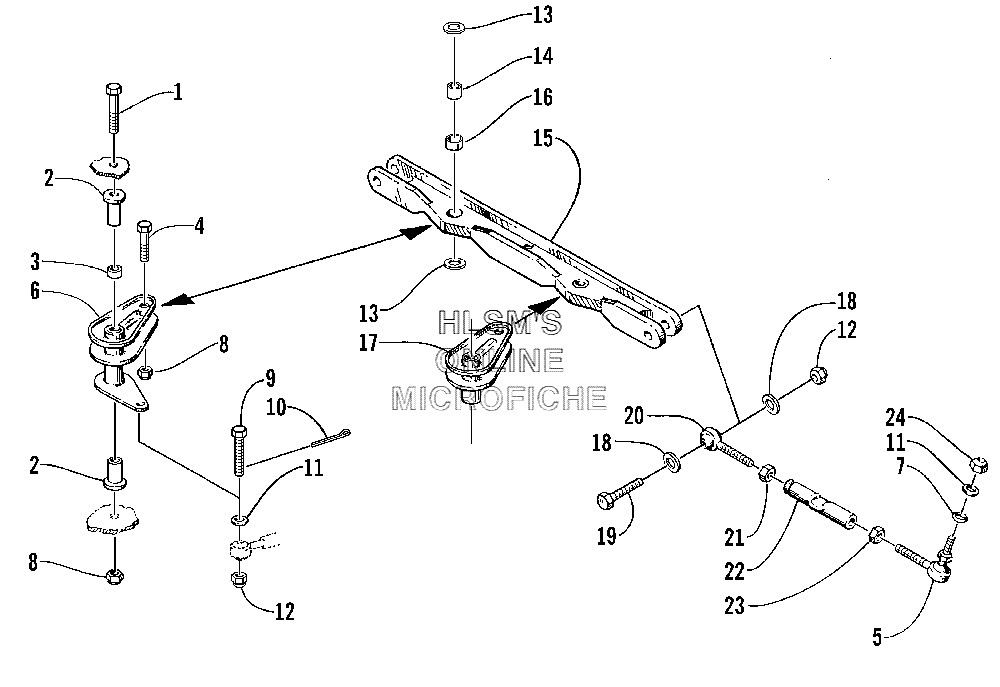

TIE ROD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (USA) - 2001 года выпуска
-
№АртикулНазвание
-
18002-234 SCREW, CAPSCREW, CAP
-
20605-451 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
30605-449 SPACERSPACER
-
48002-225 SCREW, CAPSCREW, CAP
-
50605-423 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
-
60705-295 ARM, STEERINGARM, STEERING
-
70605-014 O-RINGO-RING
-
88040-486 NUT, LOCKNUT, LOCK
-
90623-436 SCREW, CAPSCREW, CAP
-
100623-175 PIN, COTTERPIN, COTTER
-
110623-044 WASHERWASHER
-
120623-026 NUT, LOCKNUT, LOCK
-
130605-065 WASHER, SPACERWASHER, SPACER
-
140605-066 AXLE, DRAG LINKAXLE, DRAG LINK
-
150705-134 DRAG LINK (INC. 16)DRAG LINK (INC. 16)
-
160605-107 BEARINGBEARING
-
170705-296 ARM, STEERING, IDLERARM, STEERING, IDLER
-
188050-277 WASHERWASHER
-
198002-227 SCREW, CAPSCREW, CAP
-
200605-202 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
210623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
220605-216 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
230123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
240623-025 NUT, LOCKNUT, LOCK
