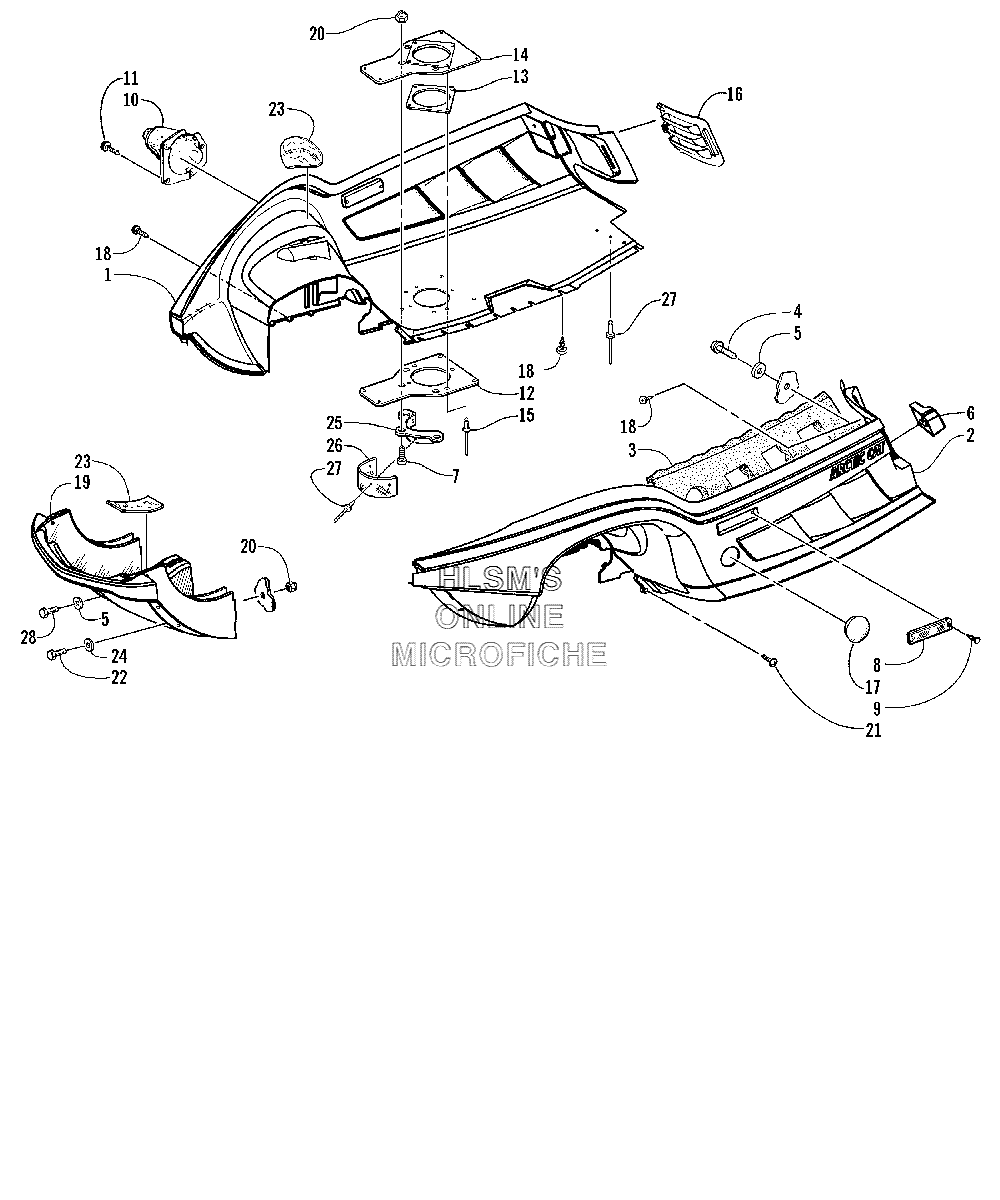

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat PANTERA 1000 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
11706-038 BELLY PAN - RIGHTBELLY PAN - RIGHT
-
21706-037 BELLY PAN - LEFTBELLY PAN - LEFT
-
30617-301 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
40623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50623-184 WASHERWASHER
-
61606-800 SUPPORT, BELLY PAN - RIGHTSUPPORT, BELLY PAN - RIGHT
-
61606-801 SUPPORT, BELLY PAN - LEFTSUPPORT, BELLY PAN - LEFT
-
78002-040 SCREW, CAPSCREW, CAP
-
80606-526 REFLECTOR, FRONT - YELLOWREFLECTOR, FRONT - YELLOW
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
100605-409 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
110623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
121612-063 SHIELD, HEAT - OUTER BELLY PANSHIELD, HEAT - OUTER BELLY PAN
-
130612-890 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
141612-064 SHIELD, HEAT - INNER BELLY PANSHIELD, HEAT - INNER BELLY PAN
-
158060-510 RIVETRIVET
-
161606-798 LOUVER, AIR-INTAKE - RIGHTLOUVER, AIR-INTAKE - RIGHT
-
161606-799 LOUVER, AIR-INTAKE - LEFTLOUVER, AIR-INTAKE - LEFT
-
170623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191606-326 BUMPER, FRONTBUMPER, FRONT
-
208040-366 NUT, LOCKNUT, LOCK
-
210623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
228002-041 SCREW, CAPSCREW, CAP
-
230619-206 TAPE, FOILTAPE, FOIL
-
248050-222 WASHERWASHER
-
251612-065 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
261612-067 FLAP, EXHAUST DEFLECTORFLAP, EXHAUST DEFLECTOR
-
278061-508 RIVETRIVET
-
288002-044 SCREW, CAPSCREW, CAP
