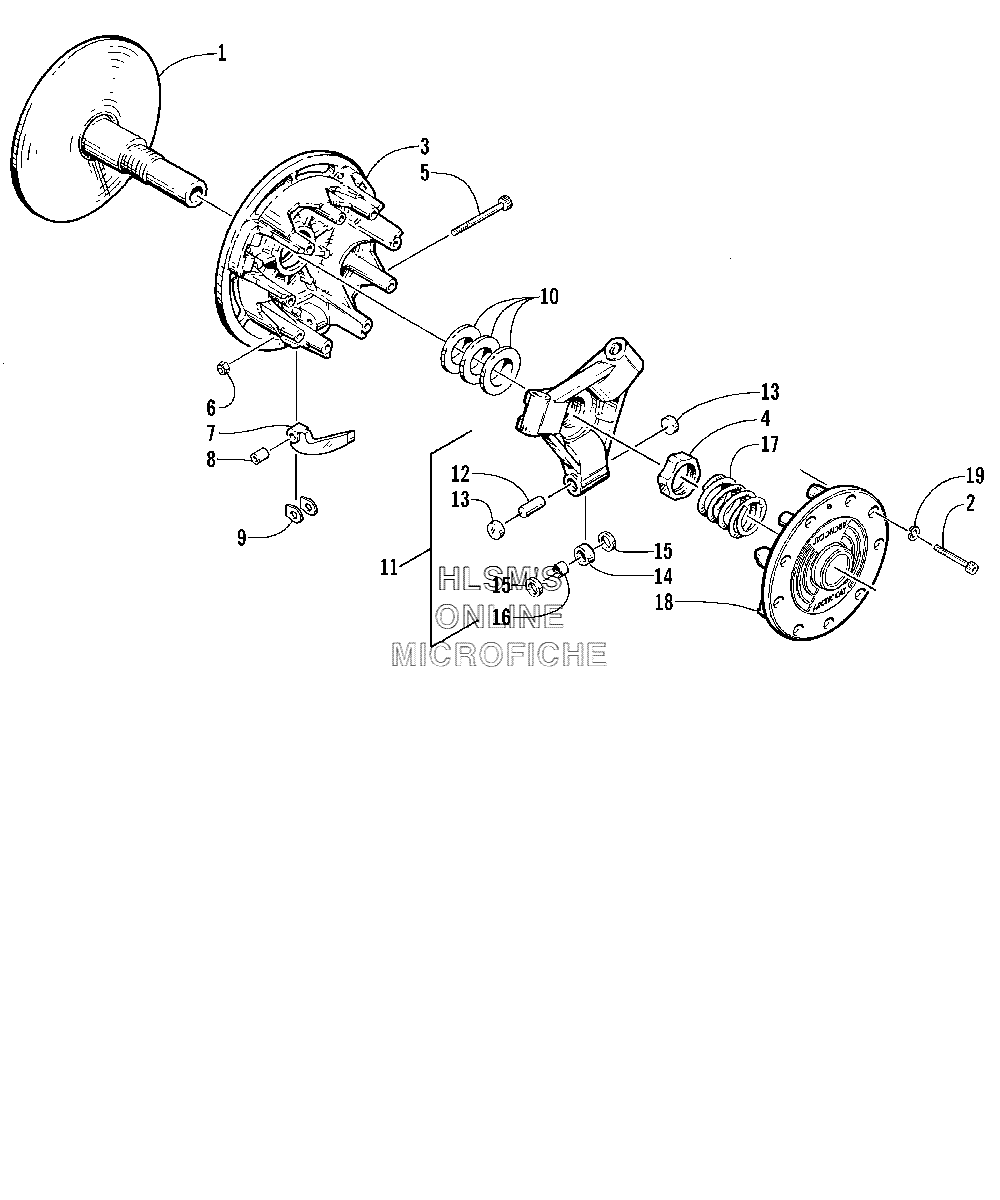

DRIVE CLUTCH для Arctic Cat PANTERA 1000 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
-0725-308 DRIVE, CLUTCH ASSEMBLYDRIVE, CLUTCH ASSEMBLY
-
10646-274 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20623-596 SCREW, MACHINESCREW, MACHINE
-
30746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-539 ARM, CAM (INC 8)ARM, CAM (INC 8)
-
70746-600 ARM, CAM (INC 8) (5-9,000 FT ALT)ARM, CAM (INC 8) (5-9,000 FT ALT)
-
70746-608 ARM, CAM (INC 8) (OVER 9,000 FT ALT)ARM, CAM (INC 8) (OVER 9,000 FT ALT)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-090 SPIDER ASSEMBLY (INC 12-16)SPIDER ASSEMBLY (INC 12-16)
-
120646-270 PIN, SPIDERPIN, SPIDER
-
130646-293 BUTTON, SPIDERBUTTON, SPIDER
-
140746-067 ROLLER, SPIDER (INC 16)ROLLER, SPIDER (INC 16)
-
150646-327 WASHER, ROLLERWASHER, ROLLER
-
160646-272 BEARING, ROLLERBEARING, ROLLER
-
170646-149 SPRING, DRIVE CLUTCH - REDSPRING, DRIVE CLUTCH - RED
-
180746-086 COVERCOVER
-
198051-212 WASHER, LOCKWASHER, LOCK
