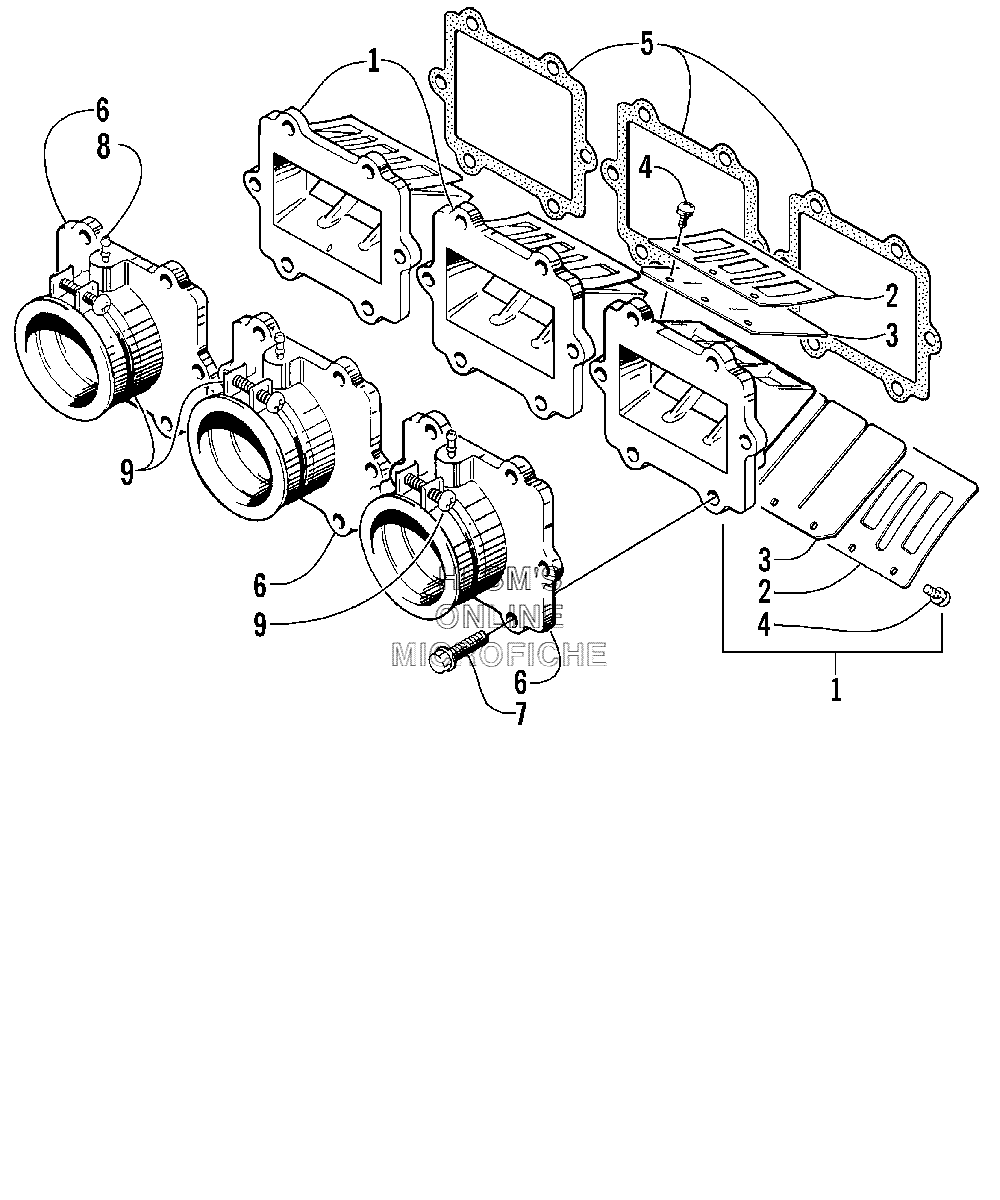

REED VALVE ASSEMBLY для Arctic Cat PANTERA 1000 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE ASSEMBLY (INC 2-4)VALVE ASSEMBLY (INC 2-4)
-
23004-176 STOPPER, REED VALVESTOPPER, REED VALVE
-
33004-177 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-419 INTAKE FLANGE ASSEMBLYINTAKE FLANGE ASSEMBLY
-
73004-376 BOLTBOLT
-
83003-597 FITTING, OIL INJECTIONFITTING, OIL INJECTION
-
93004-463 CLAMP, INTAKECLAMP, INTAKE
