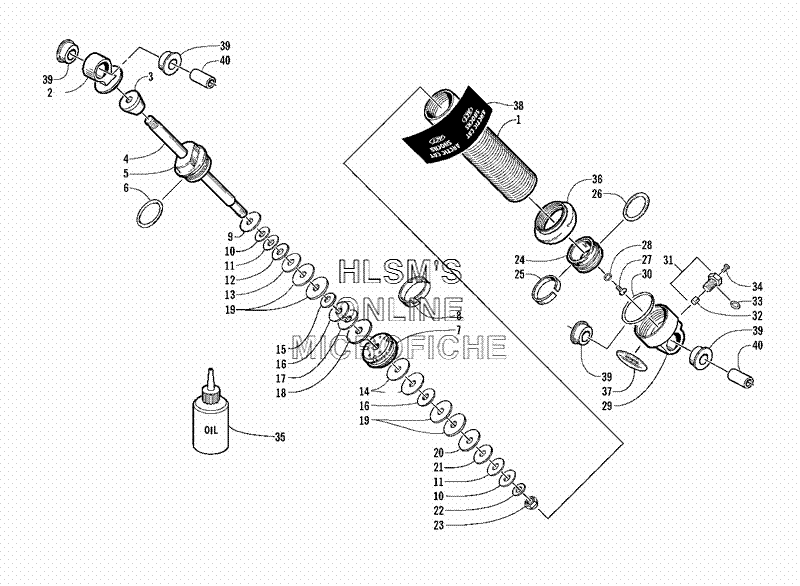

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat THUNDERCAT (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
-0703-753 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11603-308 BODY, SHOCKBODY, SHOCK
-
20703-695 EYELETEYELET
-
30603-991 BUMPER, SHOCKBUMPER, SHOCK
-
41603-442 ROD, SHOCKROD, SHOCK
-
50704-386 CAP, SHOCK (INC 6)CAP, SHOCK (INC 6)
-
61604-271 O-RINGO-RING
-
70603-953 PISTON, 0.093 IN. - ORIFICEPISTON, 0.093 IN. - ORIFICE
-
81604-274 STRAP, PISTON - TEFLONSTRAP, PISTON - TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
132603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
142603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
152603-044 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
162603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
172603-072 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
182603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
192603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
202603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
212603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
221604-273 WASHER, BACKUPWASHER, BACKUP
-
230623-696 NUT, LOCKNUT, LOCK
-
241604-276 PISTON, FLOATINGPISTON, FLOATING
-
251604-278 STRAP, PISTON - TEFLONSTRAP, PISTON - TEFLON
-
261604-277 O-RINGO-RING
-
270623-697 SCREW, RELIEFSCREW, RELIEF
-
281604-279 O-RINGO-RING
-
291603-426 END CAP, SHOCKEND CAP, SHOCK
-
301604-280 O-RING, END CAPO-RING, END CAP
-
310704-383 VALVE, PRESSURE (INC 32-33)VALVE, PRESSURE (INC 32-33)
-
331604-284 O-RING, VALVEO-RING, VALVE
-
340624-433 SCREW, VALVESCREW, VALVE
-
351639-245 OIL, GAS SHOCK - 6 QT CASEOIL, GAS SHOCK - 6 QT CASE
-
360603-960 NUT, ADJUSTERNUT, ADJUSTER
-
373611-007 DECAL, WARNINGDECAL, WARNING
-
383611-691 DECAL, ''ACT'' - SHOCKDECAL, ''ACT'' - SHOCK
-
390603-955 BUSHING, SHOCKBUSHING, SHOCK
-
401603-209 SLEEVE, EYELETSLEEVE, EYELET
