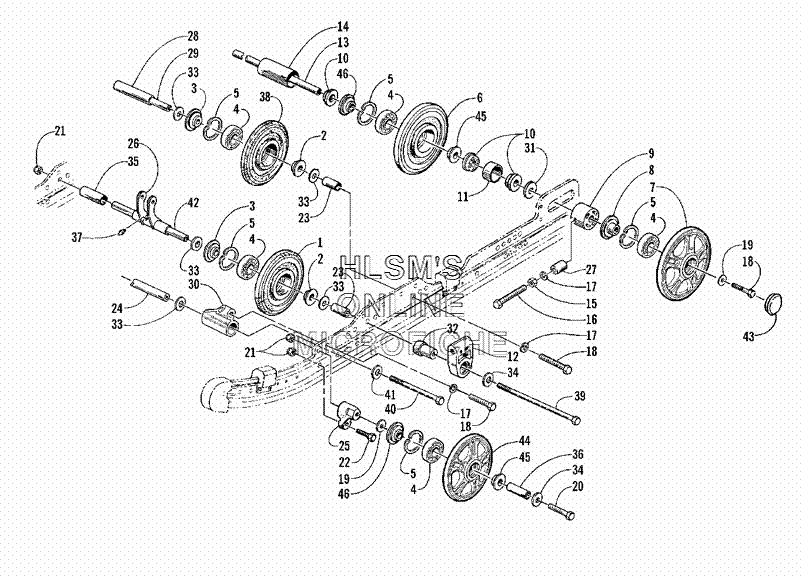

IDLER WHEEL ASSEMBLY для Arctic Cat THUNDERCAT (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10604-459 WHEEL, IDLER (INC 2-5)WHEEL, IDLER (INC 2-5)
-
20104-341 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
30104-340 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-685 WHEEL, IDLER (INC 4-5 AND 45-46)WHEEL, IDLER (INC 4-5 AND 45-46)
-
71604-694 WHEEL, IDLER (INC 4-5 AND 8)WHEEL, IDLER (INC 4-5 AND 8)
-
81604-774 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
110704-505 SPACER, REAR WHEEL - OUTERSPACER, REAR WHEEL - OUTER
-
120604-403 SLIDE, SPRINGSLIDE, SPRING
-
131604-217 AXLE, REARAXLE, REAR
-
140704-504 SPACER, REAR WHEEL - CENTERSPACER, REAR WHEEL - CENTER
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
188012-223 SCREW, CAPSCREW, CAP
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-224 SCREW, CAPSCREW, CAP
-
230704-499 SPACER, ALUMINUMSPACER, ALUMINUM
-
241604-400 AXLE, STEELAXLE, STEEL
-
250704-494 BLOCK, MOUNTING - IDLER WHEEL - RIGHTBLOCK, MOUNTING - IDLER WHEEL - RIGHT
-
250704-495 BLOCK, MOUNTING - IDLER WHEEL - LEFTBLOCK, MOUNTING - IDLER WHEEL - LEFT
-
260704-374 PIVOT, SHOCK (INC 37)PIVOT, SHOCK (INC 37)
-
270604-298 SPACERSPACER
-
280704-500 SPACER, ALUMINUMSPACER, ALUMINUM
-
290604-930 AXLE, INNERAXLE, INNER
-
301604-070 SUPPORT, FRONT ARM SHOCKSUPPORT, FRONT ARM SHOCK
-
310623-220 WASHERWASHER
-
320604-912 BLOCK, SLIDEBLOCK, SLIDE
-
330623-675 WASHERWASHER
-
348050-282 WASHERWASHER
-
350603-105 SPACERSPACER
-
360603-030 AXLE, SERRATEDAXLE, SERRATED
-
379916-963 FITTING, GREASEFITTING, GREASE
-
380604-004 WHEEL, IDLER (INC 2-5)WHEEL, IDLER (INC 2-5)
-
390623-734 SCREW, CAPSCREW, CAP
-
400623-105 SCREW, CAPSCREW, CAP
-
410623-044 WASHERWASHER
-
421604-209 AXLE, STEELAXLE, STEEL
-
430604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
441604-693 WHEEL, IDLER (INC 4-5 AND 45-46)WHEEL, IDLER (INC 4-5 AND 45-46)
-
451604-773 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
461604-772 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
