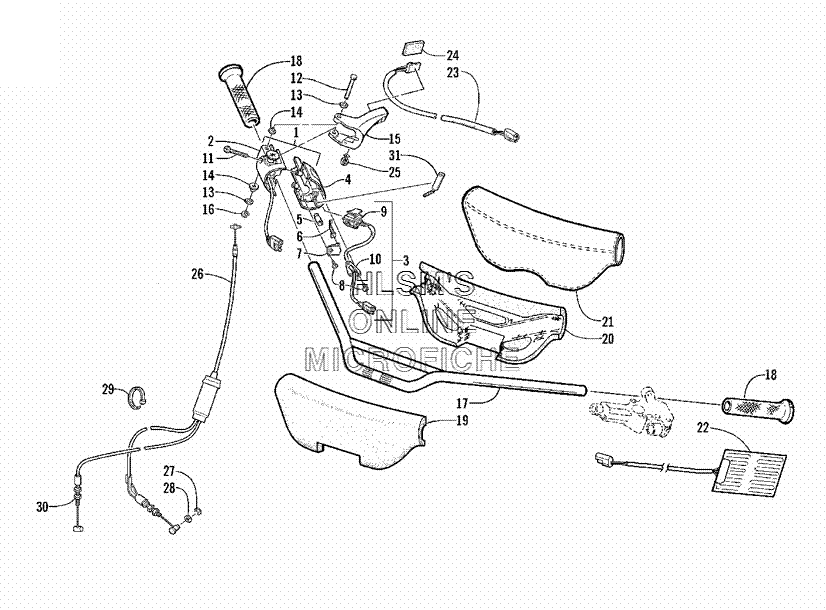

HANDLEBAR AND CONTROLS для Arctic Cat THUNDERCAT (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10609-482 CONTROL, THROTTLE (INC 2-11)CONTROL, THROTTLE (INC 2-11)
-
20609-493 CONTROL, THROTTLE - STOP SWITCH HALF (INC TWO NO 8)CONTROL, THROTTLE - STOP SWITCH HALF (INC TWO NO 8)
-
30609-500 CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (INC 4-10)CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (INC 4-10)
-
40609-495 CONTROL, THROTTLE - THUMBWARMER HALFCONTROL, THROTTLE - THUMBWARMER HALF
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING - THROTTLE CABLECLIP, RETAINING - THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90609-382 SWITCH, THUMBWARMER ASSEMBLY (INC THRE NO 8 AND ONE NO 10)SWITCH, THUMBWARMER ASSEMBLY (INC THRE NO 8 AND ONE NO 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER - THROTTLEWASHER, SHOULDER - THROTTLE
-
150609-368 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-360 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190605-354 PAD, HANDLEBAR - FRONTPAD, HANDLEBAR - FRONT
-
200605-353 PAD, HANDLEBAR - REARPAD, HANDLEBAR - REAR
-
210705-285 WRAP, HANDLEBARWRAP, HANDLEBAR
-
220609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
230609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INSULATORPAD, INSULATOR
-
250623-262 CLIP, WIRECLIP, WIRE
-
260687-138 CABLE, THROTTLECABLE, THROTTLE
-
270124-057 E-RINGE-RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
300623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
311639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
