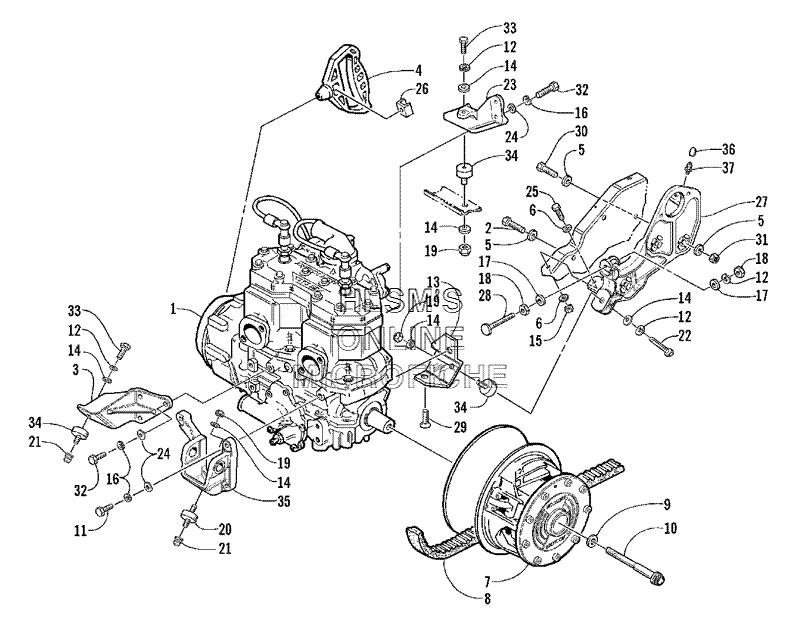

ENGINE AND RELATED PARTS для Arctic Cat ZL 500 EFI ESR - 2001 года выпуска
-
№АртикулНазвание
-
10662-296 ENGINE, AT50L5 W/O EFI COMPONENTSENGINE, AT50L5 W/O EFI COMPONENTS
-
28002-225 SCREW, CAPSCREW, CAP
-
30708-102 BRACKET, ENGINE MOUNTING - RIGHT FRONTBRACKET, ENGINE MOUNTING - RIGHT FRONT
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50623-044 WASHERWASHER
-
68050-222 WASHERWASHER
-
70725-290 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
100623-804 BOLT, CLUTCHBOLT, CLUTCH
-
118012-134 SCREW, CAPSCREW, CAP
-
128051-277 WASHER, LOCKWASHER, LOCK
-
130708-120 BRACKET, ENGINE MOUNTING - LEFT REARBRACKET, ENGINE MOUNTING - LEFT REAR
-
148050-277 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
168051-247 WASHER, LOCKWASHER, LOCK
-
178050-282 WASHERWASHER
-
188042-516 NUTNUT
-
198040-486 NUT, LOCKNUT, LOCK
-
200608-118 MOUNT, ENGINE - DOUBLE MALEMOUNT, ENGINE - DOUBLE MALE
-
210623-699 INSERT, THREADEDINSERT, THREADED
-
228002-226 SCREW, CAPSCREW, CAP
-
230708-104 BRACKET, ENGINE MOUNTING - RIGHT REARBRACKET, ENGINE MOUNTING - RIGHT REAR
-
248050-247 WASHERWASHER
-
258002-041 SCREW, CAPSCREW, CAP
-
260606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
270708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC 36-37)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC 36-37)
-
280608-299 BUMPER, TORQUE - ENGINEBUMPER, TORQUE - ENGINE
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
300623-628 SCREW, CAPSCREW, CAP
-
310623-026 NUT, LOCKNUT, LOCK
-
328012-132 SCREW, CAPSCREW, CAP
-
338002-222 SCREW, CAPSCREW, CAP
-
340608-217 MOUNT, ENGINEMOUNT, ENGINE
-
350745-125 BRACKET, ENGINE MOUNTING - LEFT FRONTBRACKET, ENGINE MOUNTING - LEFT FRONT
-
360623-899 FITTING, GREASEFITTING, GREASE
-
370623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
