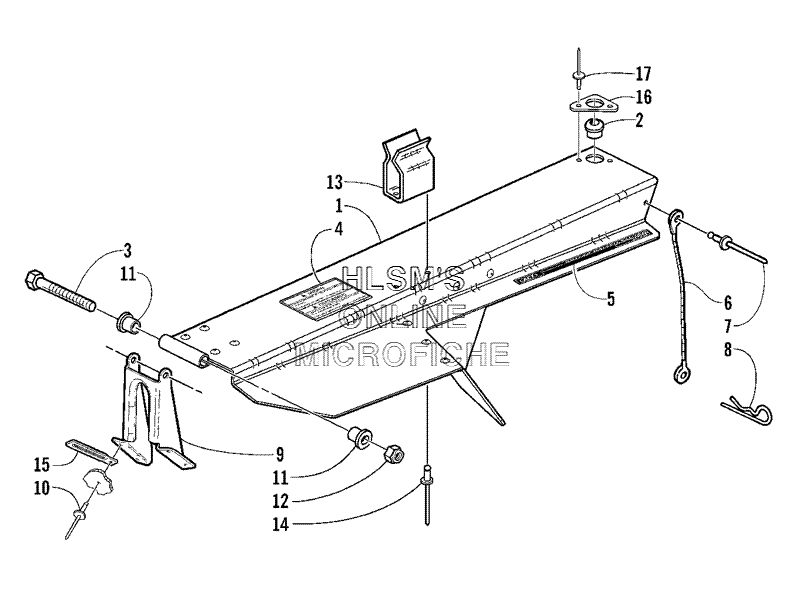

BELT GUARD ASSEMBLY для Arctic Cat ZL 600 EFI (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
10707-423 BELT GUARD (INC 2 AND 16-17)BELT GUARD (INC 2 AND 16-17)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
38002-050 SCREW, CAPSCREW, CAP
-
41611-565 DECAL, WARNING - GUARDDECAL, WARNING - GUARD
-
53611-969 DECAL, ''ACT - ROLLER DRIVEN CLUTCH''DECAL, ''ACT - ROLLER DRIVEN CLUTCH''
-
60607-447 CABLECABLE
-
78060-426 RIVETRIVET
-
80605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
90607-592 BRACKET, GUARDBRACKET, GUARD
-
108061-508 RIVETRIVET
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128040-366 NUT, LOCKNUT, LOCK
-
130636-659 HOLDER, DRIVE BELT (INC 14)HOLDER, DRIVE BELT (INC 14)
-
148060-704 RIVETRIVET
-
153002-964 CLAMP, WIRECLAMP, WIRE
-
160607-550 PLATE, BUSHING - BELT GUARDPLATE, BUSHING - BELT GUARD
-
178060-504 RIVETRIVET
