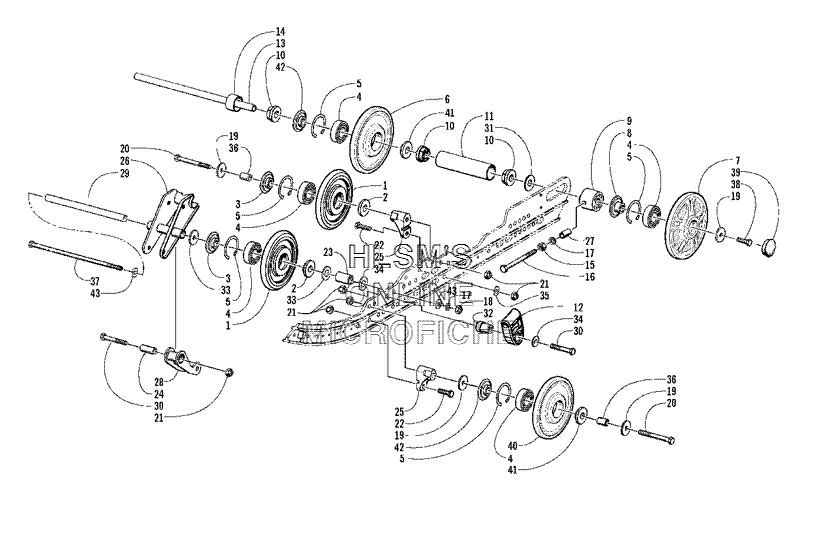

IDLER WHEEL ASSEMBLY для Arctic Cat ZL 600 EFI (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC 2-5)WHEEL, IDLER (INC 2-5)
-
20104-341 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
30104-340 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-685 WHEEL, IDLER (INC 4-5 AND 41-42)WHEEL, IDLER (INC 4-5 AND 41-42)
-
71604-694 WHEEL, IDLER (INC 4-5 AND 8)WHEEL, IDLER (INC 4-5 AND 8)
-
81604-774 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
111604-107 SPACER, REAR WHEELSPACER, REAR WHEEL
-
121604-143 SLIDE, SPRINGSLIDE, SPRING
-
130604-208 AXLE, REAR WHEELAXLE, REAR WHEEL
-
140604-937 SPACER, REAR WHEEL - OUTERSPACER, REAR WHEEL - OUTER
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
180623-026 NUT, LOCKNUT, LOCK
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-224 SCREW, CAPSCREW, CAP
-
231604-477 SPACERSPACER
-
241604-329 AXLE, REAR SHOCK PIVOTAXLE, REAR SHOCK PIVOT
-
251604-612 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
260704-396 BRACKET, MOUNTING - FRONT ARM SHOCKBRACKET, MOUNTING - FRONT ARM SHOCK
-
270604-298 SPACERSPACER
-
280704-394 PIVOT, REAR SHOCKPIVOT, REAR SHOCK
-
291604-592 AXLE, INNERAXLE, INNER
-
308002-228 SCREW, CAPSCREW, CAP
-
310623-220 WASHERWASHER
-
320604-912 BLOCK, SLIDEBLOCK, SLIDE
-
330623-675 WASHERWASHER
-
348050-282 WASHERWASHER
-
350623-044 WASHERWASHER
-
360603-030 AXLE, SERRATEDAXLE, SERRATED
-
370623-105 SCREW, CAPSCREW, CAP
-
388012-223 SCREW, CAPSCREW, CAP
-
390604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
401604-684 WHEEL, IDLER (INC 4-5 AND 41-42)WHEEL, IDLER (INC 4-5 AND 41-42)
-
411604-773 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
421604-772 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
-
438050-277 WASHERWASHER
