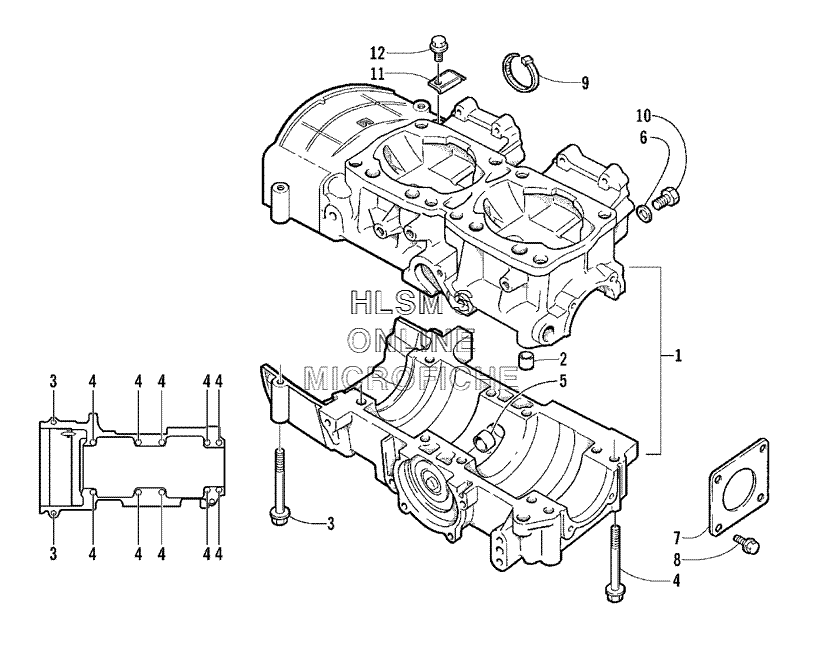

CRANKCASE ASSEMBLY для Arctic Cat ZL 600 EFI (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
13005-664 CRANKCASE ASSEMBLY (INC 2 AND 4-6)CRANKCASE ASSEMBLY (INC 2 AND 4-6)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33004-881 BOLTBOLT
-
43005-514 BOLTBOLT
-
53003-647 BUSHING, OIL PUMP SHAFTBUSHING, OIL PUMP SHAFT
-
63002-276 GASKETGASKET
-
73004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-377 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
90123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
103002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
110608-117 BRACKET, GROUND WIRE - ENGINEBRACKET, GROUND WIRE - ENGINE
-
123004-338 BOLTBOLT
