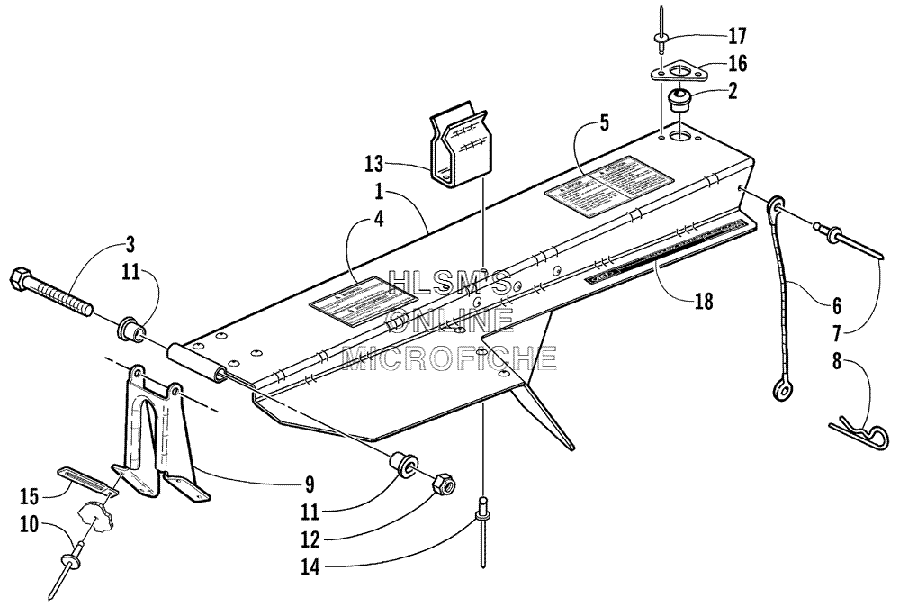

BELT GUARD ASSY. для Arctic Cat ZL 800 (ESR ILLUSION) - 2001 года выпуска
-
№АртикулНазвание
-
10707-423 BELT GUARD (INC. 2 AND 16, 17)BELT GUARD (INC. 2 AND 16, 17)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
38002-050 SCREW, CAPSCREW, CAP
-
41611-565 DECAL, WARNING, GUARDDECAL, WARNING, GUARD
-
51611-582 DECAL, CAUTION, JETTING/STORAGEDECAL, CAUTION, JETTING/STORAGE
-
60607-447 CABLECABLE
-
78060-426 RIVETRIVET
-
80605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
90607-592 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
108061-508 RIVETRIVET
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128040-366 NUT, LOCKNUT, LOCK
-
130636-659 HOLDER, DRIVE BELT (INC. 14)HOLDER, DRIVE BELT (INC. 14)
-
148060-704 RIVETRIVET
-
153002-964 CLAMP, WIRECLAMP, WIRE
-
160607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
178060-504 RIVETRIVET
-
183611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
