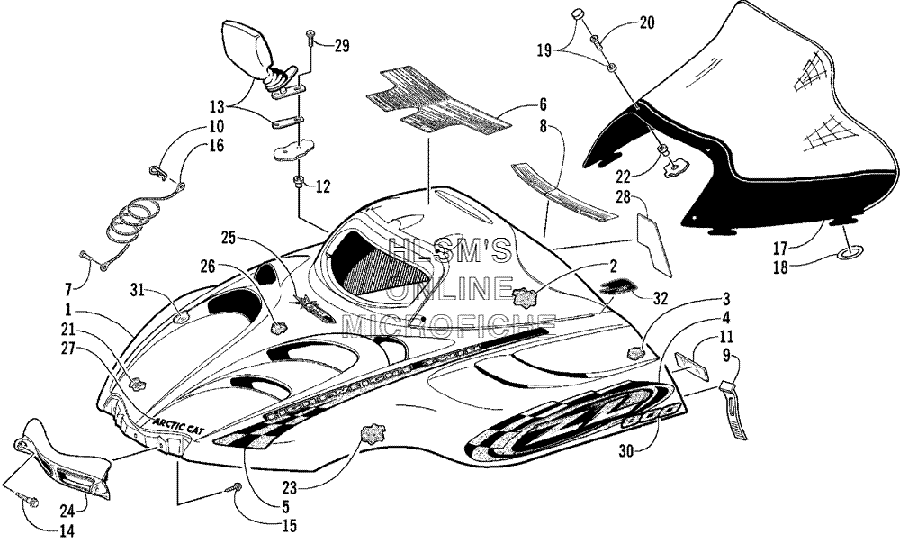

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZL 800 (ESR ILLUSION) - 2001 года выпуска
-
№АртикулНазвание
-
10718-937 HOOD W/O DECALS (ILLUSION)HOOD W/O DECALS (ILLUSION)
-
10718-987 HOOD W/DECALS (ILLUSION)HOOD W/DECALS (ILLUSION)
-
20617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
20617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
30717-164 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
43611-925 DECAL, HOOD (LOWER/RIGHT) (ILLUSION)DECAL, HOOD (LOWER/RIGHT) (ILLUSION)
-
43611-926 DECAL, HOOD (LOWER/LEFT) (ILLUSION)DECAL, HOOD (LOWER/LEFT) (ILLUSION)
-
53611-927 DECAL, HOOD (UPPER/RIGHT) (ILLUSION)DECAL, HOOD (UPPER/RIGHT) (ILLUSION)
-
53611-928 DECAL, HOOD (UPPER/LEFT) (ILLUSION)DECAL, HOOD (UPPER/LEFT) (ILLUSION)
-
63611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
70623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
100623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
113611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
120123-010 NUT, EXPANSIONNUT, EXPANSION
-
130636-630 MIRROR (RIGHT) (INC. 12 AND 29)MIRROR (RIGHT) (INC. 12 AND 29)
-
130636-631 MIRROR (LEFT) (INC. 12 AND 29)MIRROR (LEFT) (INC. 12 AND 29)
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-247 CABLE, HOODCABLE, HOOD
-
172606-163 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
211606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230717-162 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
230617-327 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
241606-720 HINGE, HOODHINGE, HOOD
-
253611-581 DECAL, "ESR", DOMEDDECAL, "ESR", DOMED
-
260617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
273611-835 DECAL, "ARCTIC CAT", HOOD (ILLUSION)DECAL, "ARCTIC CAT", HOOD (ILLUSION)
-
283611-580 DECAL REVERSEDECAL REVERSE
-
290123-549 SCREW, MACHINESCREW, MACHINE
-
303611-932 DECAL, "800", HOOD (ILLUSION)DECAL, "800", HOOD (ILLUSION)
-
312606-233 FOIL, HOOD (UPPER) (RIGHT)FOIL, HOOD (UPPER) (RIGHT)
-
324611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
324611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
