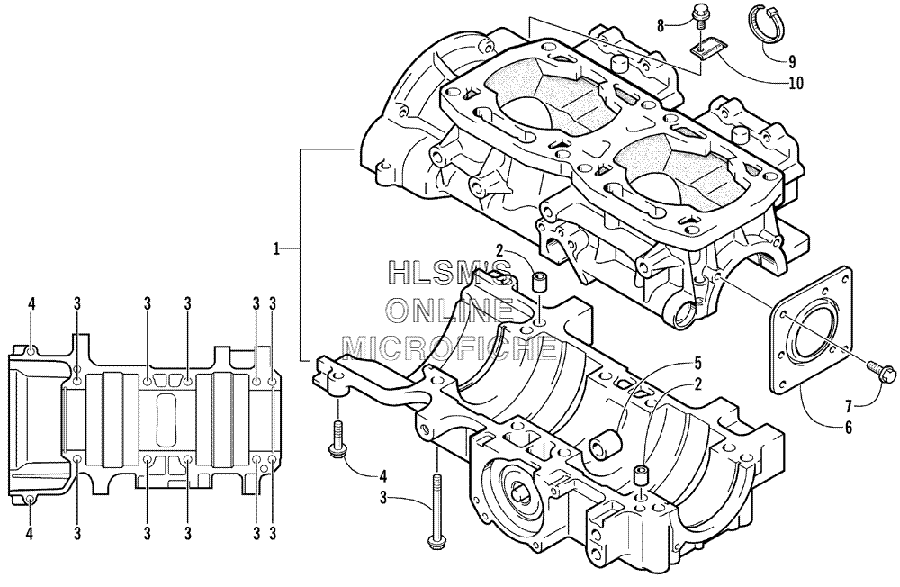

CRANKCASE ASSY. для Arctic Cat ZL 800 (ESR ILLUSION) - 2001 года выпуска
-
№АртикулНазвание
-
13005-864 CRANKCASE ASSY. (INC. 2, 5)CRANKCASE ASSY. (INC. 2, 5)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33005-846 BOLTBOLT
-
43004-426 BOLTBOLT
-
53003-647 BUSHING, SHAFT, OIL PUMPBUSHING, SHAFT, OIL PUMP
-
63008-304 PLATE, OIL SEALPLATE, OIL SEAL
-
73004-338 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
80145-105 SCREW, CAPSCREW, CAP
-
90123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
100608-117 BRACKET, GROUND WIRE, ENGINEBRACKET, GROUND WIRE, ENGINE
