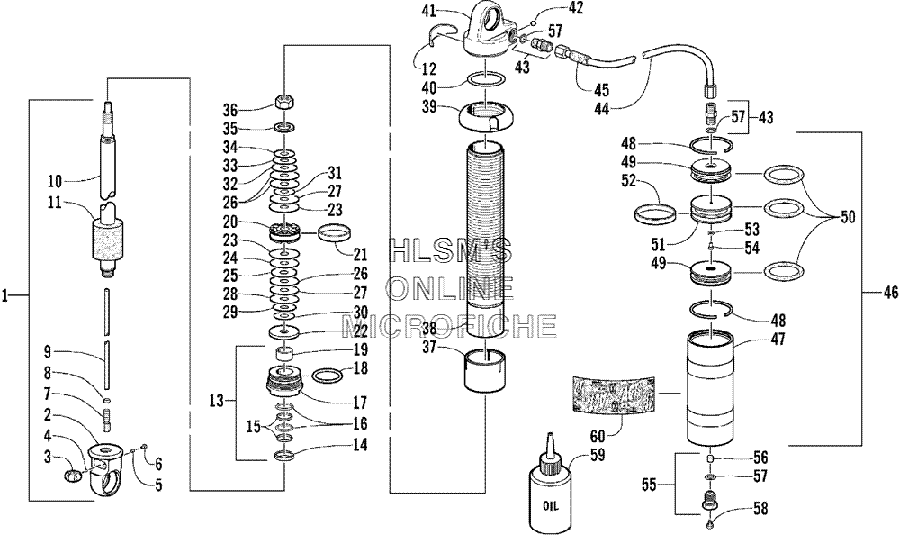

FRONT SUSPENSION SHOCK ABSORBER (CROSS COUNTRY) для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
-0703-838 COMPLETE SHOCK ABSORBER (RIGHT)COMPLETE SHOCK ABSORBER (RIGHT)
-
-0703-839 COMPLETE SHOCK ABSORBER (LEFT)COMPLETE SHOCK ABSORBER (LEFT)
-
-2639-125 REBUILD KITREBUILD KIT
-
10703-918 ROD, SHOCK (CHROME) (INC. 2, 10)ROD, SHOCK (CHROME) (INC. 2, 10)
-
21603-532 EYELET, SHOCKEYELET, SHOCK
-
31604-868 DIAL, ADJUSTER, REBOUNDDIAL, ADJUSTER, REBOUND
-
41604-872 BALLBALL
-
51604-873 PLUG SILCONEPLUG SILCONE
-
61604-871 SCREW, ADJUSTER DIALSCREW, ADJUSTER DIAL
-
71604-870 ADJUSTER, REBOUNDADJUSTER, REBOUND
-
81604-869 O-RING, ADJUSTER, REBOUNDO-RING, ADJUSTER, REBOUND
-
91603-535 ROD, ADJUSTER, REBOUNDROD, ADJUSTER, REBOUND
-
101603-534 ROD, SHOCK (CHROME)ROD, SHOCK (CHROME)
-
111603-533 BUMPER, JOUNCEBUMPER, JOUNCE
-
123611-007 DECAL, WARNING, SHOCKDECAL, WARNING, SHOCK
-
130704-664 COVER, SLIDING, ASSY. (INC. 14, 19)COVER, SLIDING, ASSY. (INC. 14, 19)
-
141604-882 SEAL, SCRAPERSEAL, SCRAPER
-
151604-884 O-RING, SEAL, STEPO-RING, SEAL, STEP
-
161604-883 SEAL, STEPSEAL, STEP
-
171604-991 COVER, SLIDING, SEAL HEADCOVER, SLIDING, SEAL HEAD
-
181604-881 O-RING, COVER, SLIDINGO-RING, COVER, SLIDING
-
191604-885 BUSHINGBUSHING
-
201604-934 PISTON, 35 MMPISTON, 35 MM
-
211604-888 RING, SLIDE, 35 MMRING, SLIDE, 35 MM
-
221603-595 WASHER, TOP OUTWASHER, TOP OUT
-
233603-058 VALVE, SHOCK 33 MM X 0.20 MMVALVE, SHOCK 33 MM X 0.20 MM
-
243603-045 VALVE, SHOCK 28 MM X 0.15 MMVALVE, SHOCK 28 MM X 0.15 MM
-
253603-052 VALVE, SHOCK 22 MM X 0.20 MMVALVE, SHOCK 22 MM X 0.20 MM
-
263603-057 VALVE, SHOCK 31 MM X 0.20 MMVALVE, SHOCK 31 MM X 0.20 MM
-
273603-047 VALVE, SHOCK 31 MM X 0.15 MMVALVE, SHOCK 31 MM X 0.15 MM
-
283603-055 VALVE, SHOCK 28 MM X 0.20 MMVALVE, SHOCK 28 MM X 0.20 MM
-
293603-054 VALVE, SHOCK 26 MM X 0.20 MMVALVE, SHOCK 26 MM X 0.20 MM
-
303603-060 VALVE, SHOCK 18 MM X 0.25 MMVALVE, SHOCK 18 MM X 0.25 MM
-
313603-042 VALVE, SHOCK 22 MM X 0.15 MMVALVE, SHOCK 22 MM X 0.15 MM
-
323603-075 VALVE, SHOCK 28 MM X 0.30 MMVALVE, SHOCK 28 MM X 0.30 MM
-
333603-074 VALVE, SHOCK 26 MM X 0.30 MMVALVE, SHOCK 26 MM X 0.30 MM
-
343603-073 VALVE, SHOCK 24 MM X 0.30 MMVALVE, SHOCK 24 MM X 0.30 MM
-
351604-968 WASHER, BACKUPWASHER, BACKUP
-
361604-961 NUT, LOCKNUT, LOCK
-
371603-271 SLEEVE, WEARSLEEVE, WEAR
-
381603-537 BODY, SHOCKBODY, SHOCK
-
390603-960 NUT, ADJUSTING, SPRINGNUT, ADJUSTING, SPRING
-
401604-892 O-RING, END CAPO-RING, END CAP
-
411603-540 END CAP (0703, 838)END CAP (0703, 838)
-
411603-541 END CAP (0703, 839)END CAP (0703, 839)
-
421604-894 BALLBALL
-
431603-542 FITTING, SHOCK (INC. ONE NO. 57)FITTING, SHOCK (INC. ONE NO. 57)
-
441603-543 HOSE, SHOCKHOSE, SHOCK
-
451604-928 WRAP, HEAT SHRINKWRAP, HEAT SHRINK
-
460704-654 RESERVOIR ASSY. (INC. 47, 54)RESERVOIR ASSY. (INC. 47, 54)
-
471603-545 BODY, RESERVOIRBODY, RESERVOIR
-
481603-547 RING, RETAININGRING, RETAINING
-
491603-548 COVER, RESERVOIRCOVER, RESERVOIR
-
501603-549 O-RINGO-RING
-
511603-551 PISTON, RESERVOIRPISTON, RESERVOIR
-
521603-550 RING, SLIDERING, SLIDE
-
531603-552 SEAL, SELF (CENTERING)SEAL, SELF (CENTERING)
-
541603-553 SCREW, BLEEDSCREW, BLEED
-
550704-383 VALVE, PRESSURE, ASSY. (INC. 56 AND ONE NO. 57)VALVE, PRESSURE, ASSY. (INC. 56 AND ONE NO. 57)
-
571604-284 O-RINGO-RING
-
580624-433 SCREW, MACHINESCREW, MACHINE
-
591639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
604611-261 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
