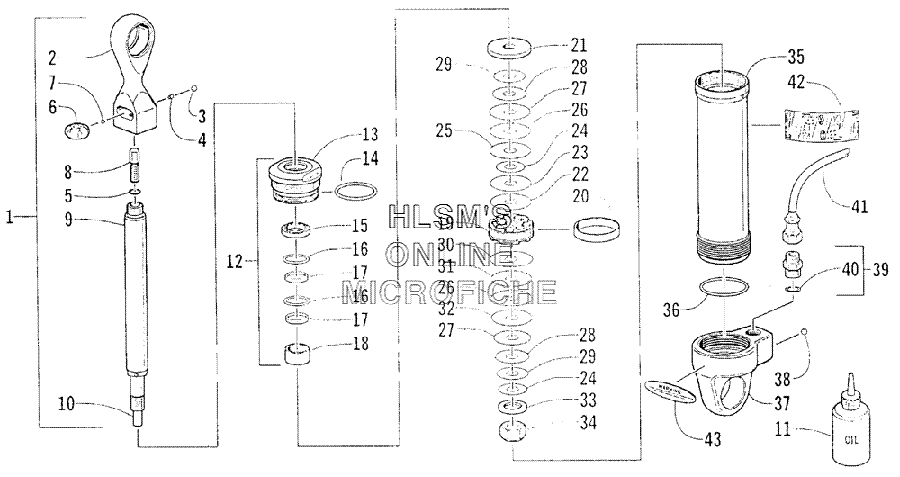

REAR SUSPENSION REAR ARM SHOCK ABSORBER (CROSS COUNTRY) для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
-0704-574 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10704-663 ROD, SHOCK ASSY. (CHROME) (INC. 2, 10)ROD, SHOCK ASSY. (CHROME) (INC. 2, 10)
-
21604-867 EYELET, SHOCKEYELET, SHOCK
-
31604-871 SCREW, ADJUSTER DIALSCREW, ADJUSTER DIAL
-
41604-873 PLUG SILICONEPLUG SILICONE
-
51604-869 O-RING, ADJUSTER, REBOUNDO-RING, ADJUSTER, REBOUND
-
61604-868 DIAL, ADJUSTER, REBOUNDDIAL, ADJUSTER, REBOUND
-
71604-872 BALLBALL
-
81604-870 ADJUSTER, REBOUNDADJUSTER, REBOUND
-
91604-929 ROD, SHOCK (CHROME)ROD, SHOCK (CHROME)
-
101604-930 ROD, ADJUSTER, REBOUNDROD, ADJUSTER, REBOUND
-
111639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
120704-664 COVER, SLIDING, ASSY. (INC. 13, 18)COVER, SLIDING, ASSY. (INC. 13, 18)
-
131604-991 COVER, SLIDING, SEAL HEADCOVER, SLIDING, SEAL HEAD
-
141604-881 O-RING, COVERO-RING, COVER
-
151604-882 SEAL, SCRAPERSEAL, SCRAPER
-
161604-884 O-RING, SEAL, STEPO-RING, SEAL, STEP
-
171604-883 SEAL, STEPSEAL, STEP
-
181604-885 BUSHINGBUSHING
-
191604-887 PISTON, 35 MMPISTON, 35 MM
-
201604-888 RING, SLIDE, 35 MMRING, SLIDE, 35 MM
-
211604-886 WASHER, TOP OUTWASHER, TOP OUT
-
223603-058 VALVE, SHOCK 33 MM X 0.20 MMVALVE, SHOCK 33 MM X 0.20 MM
-
233603-055 VALVE, SHOCK 28 MM X 0.20 MMVALVE, SHOCK 28 MM X 0.20 MM
-
243603-062 VALVE, SHOCK 22 MM X 0.25 MMVALVE, SHOCK 22 MM X 0.25 MM
-
253603-047 VALVE, SHOCK 31 MM X 0.15 MMVALVE, SHOCK 31 MM X 0.15 MM
-
263603-067 VALVE, SHOCK 31 MM X 0.25 MMVALVE, SHOCK 31 MM X 0.25 MM
-
273603-065 VALVE, SHOCK 28 MM X 0.25 MMVALVE, SHOCK 28 MM X 0.25 MM
-
283603-064 VALVE, SHOCK 26 MM X 0.25 MMVALVE, SHOCK 26 MM X 0.25 MM
-
293603-063 VALVE, SHOCK 24 MM X 0.25 MMVALVE, SHOCK 24 MM X 0.25 MM
-
303603-078 VALVE, SHOCK 33 MM X 0.30 MMVALVE, SHOCK 33 MM X 0.30 MM
-
313603-077 VALVE, SHOCK 31 MM X 0.30 MMVALVE, SHOCK 31 MM X 0.30 MM
-
323603-066 VALVE, SHOCK 29 MM X 0.25 MMVALVE, SHOCK 29 MM X 0.25 MM
-
331604-966 WASHER, BACKUPWASHER, BACKUP
-
341604-961 NUT, LOCKNUT, LOCK
-
351604-967 BODY, SHOCKBODY, SHOCK
-
361604-892 O-RING, END CAPO-RING, END CAP
-
371604-893 END CAP, SHOCKEND CAP, SHOCK
-
381604-894 BALLBALL
-
391603-542 FITTING, SHOCK (INC. 40)FITTING, SHOCK (INC. 40)
-
401604-284 O-RING, FITTINGO-RING, FITTING
-
411604-906 HOSE, SHOCKHOSE, SHOCK
-
424611-261 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
433611-007 DECAL, WARNING, SHOCKDECAL, WARNING, SHOCK
