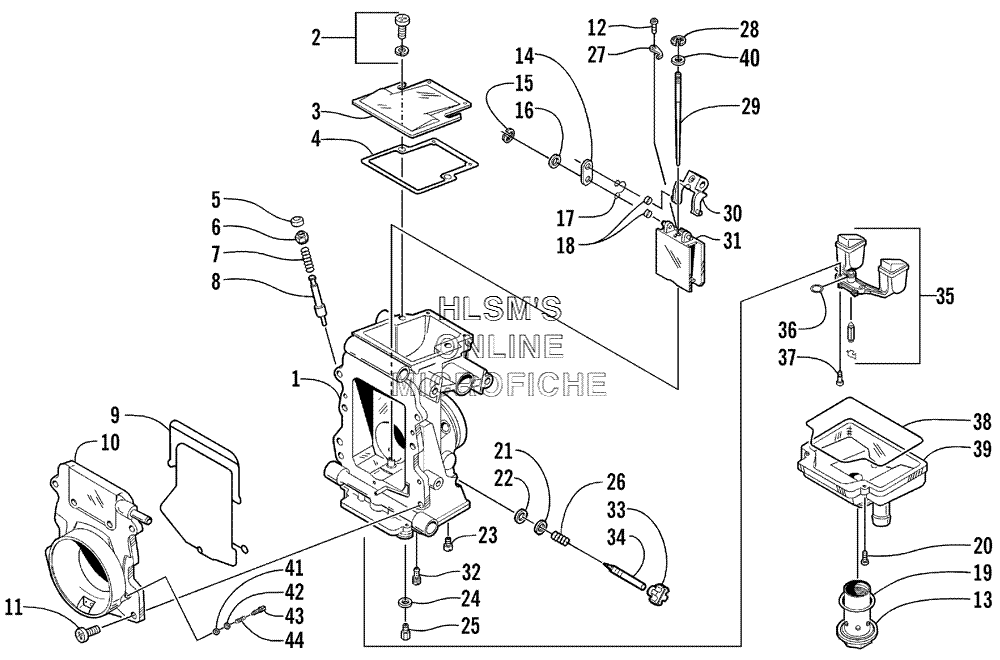

CARBURETOR - INTERNAL PARTS для Arctic Cat ZRT 600 LE - 2001 года выпуска
-
№АртикулНазвание
-
-1670-146 CARBURETOR COMPLETECARBURETOR COMPLETE
-
26505-591 SCREW ASSY.SCREW ASSY.
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-068 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-069 GUIDE, STARTER PLUNGERGUIDE, STARTER PLUNGER
-
76506-070 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
86506-071 STARTER PLUNGERSTARTER PLUNGER
-
96506-209 GASKETGASKET
-
106506-274 FUNNEL ASSY.FUNNEL ASSY.
-
116505-980 SCREWSCREW
-
126506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
136506-032 PLUG, DRAINPLUG, DRAIN
-
146506-039 PLATEPLATE
-
156506-051 E, RINGE, RING
-
166506-052 WASHERWASHER
-
176506-040 CLIPCLIP
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196505-185 O-RINGO-RING
-
206506-072 SCREWSCREW
-
216506-078 WASHERWASHER
-
226506-080 WASHER, RUBBERWASHER, RUBBER
-
236506-101 S TARTER JET 135S TARTER JET 135
-
246506-091 WASHERWASHER
-
256505-136 MAIN JET 310MAIN JET 310
-
266506-079 SPRING, ADJUSTERSPRING, ADJUSTER
-
276506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
286505-628 E, CLIPE, CLIP
-
296506-110 JET NEEDLE 9DH2, 59, 4JET NEEDLE 9DH2, 59, 4
-
306506-043 LEVER ASSY. (LEFT/RIGHT)LEVER ASSY. (LEFT/RIGHT)
-
306506-047 LEVER ASSY. (CENTER)LEVER ASSY. (CENTER)
-
316506-273 VALVE, THROTTLE CA 2.5VALVE, THROTTLE CA 2.5
-
326505-278 PILOT JET 45PILOT JET 45
-
336506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
346506-145 SCREW, FUEL MIXTURE 1.5SCREW, FUEL MIXTURE 1.5
-
356506-121 FLOAT ASSY.FLOAT ASSY.
-
366506-100 O-RINGO-RING
-
376506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
386506-038 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
396506-036 CHAMBER, FLOATCHAMBER, FLOAT
-
406505-552 WASHER, E, CLIPWASHER, E, CLIP
-
416506-202 O-RINGO-RING
-
426506-218 WASHERWASHER
-
436506-220 SCREW, AIR 1.0SCREW, AIR 1.0
-
446506-217 SPRING, AIR SCREWSPRING, AIR SCREW
