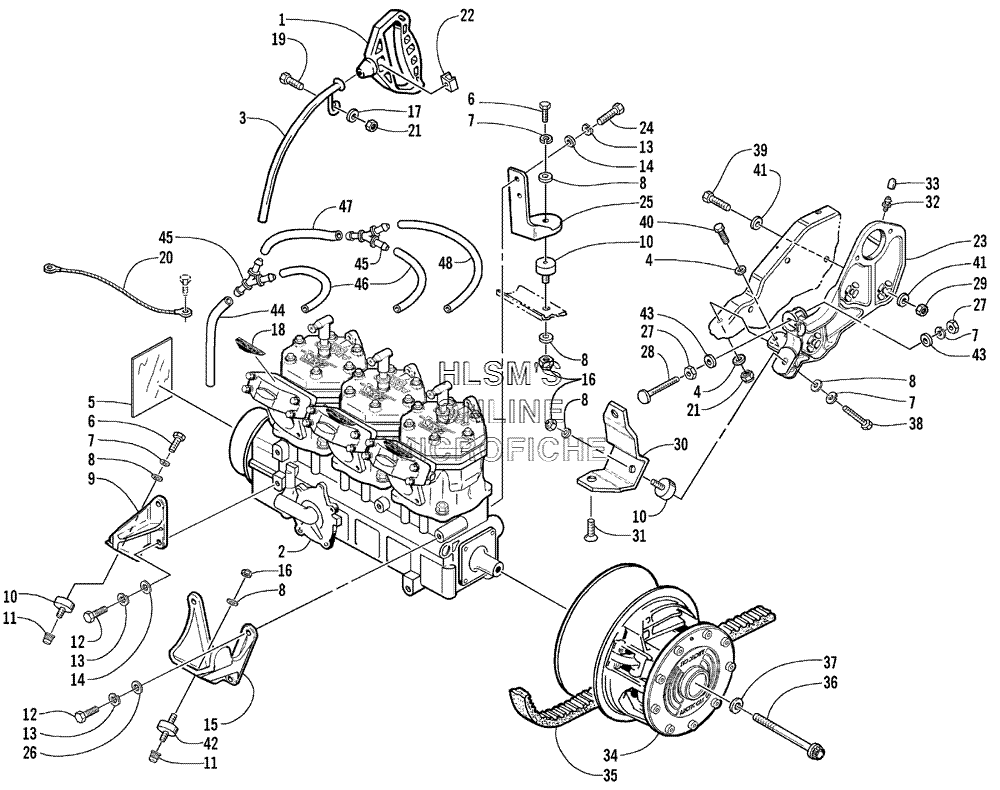

ENGINE AND RELATED PARTS для Arctic Cat ZRT 600 LE - 2001 года выпуска
-
№АртикулНазвание
-
10636-363 HANDLE, RECOILHANDLE, RECOIL
-
20662-278 ENGINE, AG60L7ENGINE, AG60L7
-
30708-088 GUIDE, RECOIL ROPEGUIDE, RECOIL ROPE
-
48050-222 WASHERWASHER
-
50619-206 FOILFOIL
-
68002-222 SCREW, CAPSCREW, CAP
-
78051-277 WASHER, LOCKWASHER, LOCK
-
88050-277 WASHER, FLATWASHER, FLAT
-
90708-010 BRACKET, ENGINE MOUNT (FRONT/RIGHT)BRACKET, ENGINE MOUNT (FRONT/RIGHT)
-
100608-251 MOUNT, ENGINEMOUNT, ENGINE
-
110623-699 INSERT, THREADEDINSERT, THREADED
-
128002-132 SCREW, CAPSCREW, CAP
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148050-247 WASHERWASHER
-
150708-011 BRACKET, ENGINE MOUNT (LEFT/FRONT)BRACKET, ENGINE MOUNT (LEFT/FRONT)
-
168040-486 NUT, LOCKNUT, LOCK
-
178050-217 WASHERWASHER
-
183611-967 DECAL, "APV"DECAL, "APV"
-
198002-045 SCREW, CAPSCREW, CAP
-
200686-126 WIRE, ENGINE GROUNDWIRE, ENGINE GROUND
-
218040-366 NUT, LOCKNUT, LOCK
-
220606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
230708-144 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 32, 33)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 32, 33)
-
248012-131 SCREW, CAPSCREW, CAP
-
250708-020 BRACKET, ENGINE MOUNT (RIGHT) (REAR)BRACKET, ENGINE MOUNT (RIGHT) (REAR)
-
268050-252 WASHERWASHER
-
278042-516 NUTNUT
-
280608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-026 NUT, LOCKNUT, LOCK
-
300708-021 BRACKET, ENGINE MOUNT (LEFT) (REAR)BRACKET, ENGINE MOUNT (LEFT) (REAR)
-
310623-095 SCREW, MACHINESCREW, MACHINE
-
320623-899 FITTING, GREASEFITTING, GREASE
-
330623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
340725-323 CLUTCH, DRIVECLUTCH, DRIVE
-
350627-020 BELT, DRIVEBELT, DRIVE
-
360623-804 BOLT, CLUTCHBOLT, CLUTCH
-
370623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
388002-226 SCREW, CAPSCREW, CAP
-
398002-225 SCREW, CAPSCREW, CAP
-
408002-041 SCREW, CAPSCREW, CAP
-
410623-044 WASHERWASHER
-
420608-250 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
438050-282 WASHERWASHER
-
440610-445 HOSE, DRAIN, 13 IN.HOSE, DRAIN, 13 IN.
-
450670-875 Y, FITTINGY, FITTING
-
460610-429 HOSE, DRAIN, 5.5 IN.HOSE, DRAIN, 5.5 IN.
-
470610-446 HOSE, DRAIN, 5.5 IN.HOSE, DRAIN, 5.5 IN.
-
480610-447 HOSE, DRAIN, 11 IN.HOSE, DRAIN, 11 IN.
