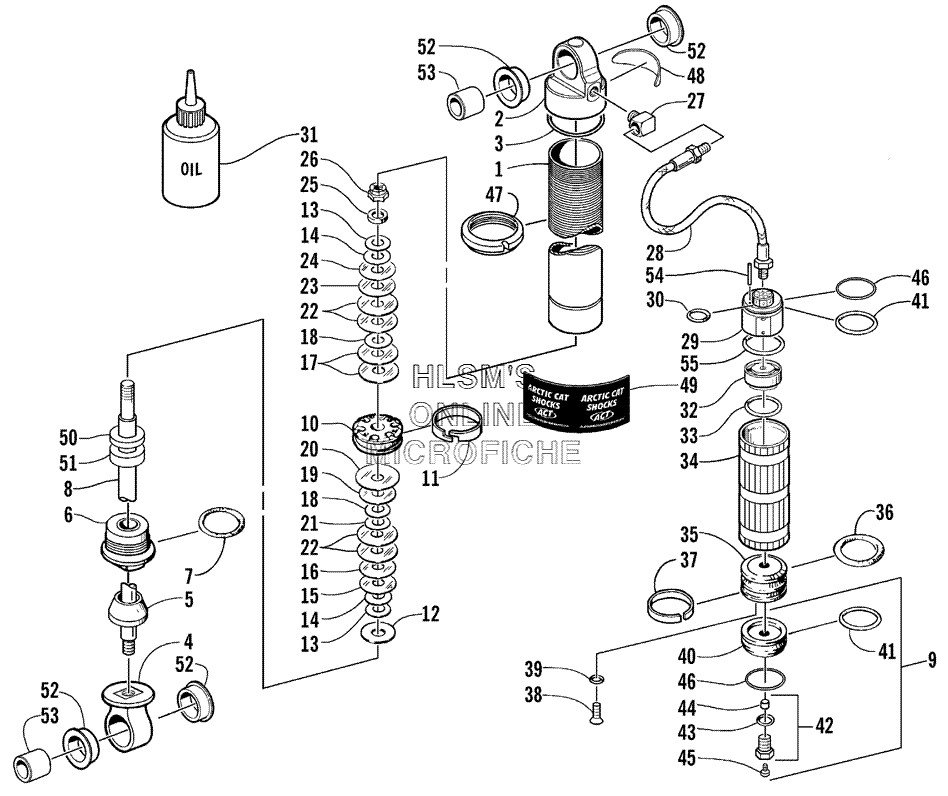

FRONT SUSPENSION SHOCK ABSORBER (LE) для Arctic Cat ZRT 600 LE - 2001 года выпуска
-
№АртикулНазвание
-
0703-798 COMPLETE SHOCK ABSORBER (RIGHT)COMPLETE SHOCK ABSORBER (RIGHT)
-
-0703-800 COMPLETE SHOCK ABSORBER (LEFT)COMPLETE SHOCK ABSORBER (LEFT)
-
11603-308 BODY, SHOCKBODY, SHOCK
-
20603-963 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
41603-501 EYELET, SHOCKEYELET, SHOCK
-
50603-991 BUMPER, SHOCKBUMPER, SHOCK
-
60704-382 END CAP, SHOCK (INC. 7)END CAP, SHOCK (INC. 7)
-
71604-271 O-RINGO-RING
-
81603-305 ROD, SHOCKROD, SHOCK
-
90703-540 END CAP, RESERVOIR, ASSY. (INC. 40, 44)END CAP, RESERVOIR, ASSY. (INC. 40, 44)
-
100603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
111604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
121604-272 WASHER, TOP OUTWASHER, TOP OUT
-
131603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
141603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
151603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
161603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
171603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
181603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
191603-072 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
201603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
211603-044 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
221603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
231603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
241603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
251604-273 WASHER, BACKUPWASHER, BACKUP
-
260623-696 NUT, LOCKNUT, LOCK
-
270603-964 FITTING, ELBOWFITTING, ELBOW
-
280603-965 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
290703-541 END CAP, RESERVOIR BODY (INC. 30 AND 41)END CAP, RESERVOIR BODY (INC. 30 AND 41)
-
300603-975 O-RINGO-RING
-
311639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
320703-542 OIL RELIEF, 2, PORT, ASSY.OIL RELIEF, 2, PORT, ASSY.
-
330603-984 RETAINERRETAINER
-
341603-315 BODY, RESERVOIRBODY, RESERVOIR
-
350603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
360603-987 O-RINGO-RING
-
370603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
380623-697 SCREW, PISTONSCREW, PISTON
-
391604-279 O-RINGO-RING
-
400603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
410603-968 O-RINGO-RING
-
420704-383 VALVE, PRESSURE (INC. 43, 44)VALVE, PRESSURE (INC. 43, 44)
-
431604-284 O-RING, VALVEO-RING, VALVE
-
450624-433 SCREW, MACHINESCREW, MACHINE
-
460603-985 RETAINER, END CAPRETAINER, END CAP
-
470603-960 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
483611-007 DECAL, WARNINGDECAL, WARNING
-
493611-691 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
501604-511 SPACER, SHAFTSPACER, SHAFT
-
511604-364 SPACER, SHAFTSPACER, SHAFT
-
520603-955 BUSHING, SHOCKBUSHING, SHOCK
-
531603-209 SLEEVE, EYELETSLEEVE, EYELET
-
541603-406 PIN, INNERDICATOR KNOBPIN, INNERDICATOR KNOB
-
550603-970 O-RINGO-RING
