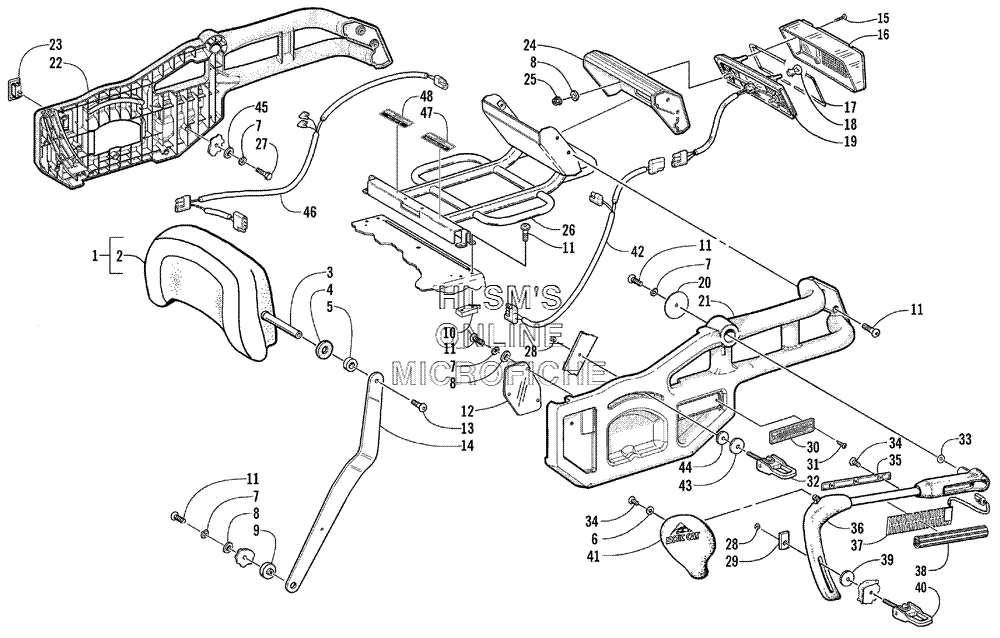

BACKREST AND TAILLIGHT ASSY. для Arctic Cat 4-STROKE TOURING - 2002 года выпуска
-
№АртикулНазвание
-
11706-331 BACKREST W/COVER (INC. 2)BACKREST W/COVER (INC. 2)
-
21706-175 COVER, BACKRESTCOVER, BACKREST
-
30114-163 AXLE, BACKRESTAXLE, BACKREST
-
40623-539 WASHER, CUPWASHER, CUP
-
50616-547 BLOCK, TENSION, BACKRESTBLOCK, TENSION, BACKREST
-
60123-802 WASHERWASHER
-
78051-217 WASHER, LOCKWASHER, LOCK
-
88050-212 WASHERWASHER
-
91606-903 SPACER, BACKREST ADJUSTERSPACER, BACKREST ADJUSTER
-
102606-786 PLATE, HEAT EXCHANGERPLATE, HEAT EXCHANGER
-
118017-582 SCREW, MACHINESCREW, MACHINE
-
121606-790 RETAINER, HANDHOLD, PASSENGERRETAINER, HANDHOLD, PASSENGER
-
130623-566 SCREW, MACHINESCREW, MACHINE
-
141606-780 ARM, ADJUSTER, BACKREST (RIGHT)ARM, ADJUSTER, BACKREST (RIGHT)
-
141606-781 ARM, ADJUSTER, BACKREST (LEFT)ARM, ADJUSTER, BACKREST (LEFT)
-
150609-093 SCREW, RETAININGSCREW, RETAINING
-
160609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
170609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
180109-460 BULB, STOP/TAILLIGHTBULB, STOP/TAILLIGHT
-
190609-091 HOUSING, TAILLIGHT W/SOCKETHOUSING, TAILLIGHT W/SOCKET
-
201606-778 RETAINER, HANDHOLDRETAINER, HANDHOLD
-
211606-683 BRACKET, BACKREST/RACK (LEFT)BRACKET, BACKREST/RACK (LEFT)
-
221606-682 BRACKET, BACKREST/RACK (RIGHT)BRACKET, BACKREST/RACK (RIGHT)
-
230609-370 SWITCH, HANDWARMER, PASSENGERSWITCH, HANDWARMER, PASSENGER
-
241606-689 COVER, TAILLIGHTCOVER, TAILLIGHT
-
250623-038 NUT W/WASHERNUT W/WASHER
-
261706-230 BRACKET, MOUNTING, RACK/TAILLIGHTBRACKET, MOUNTING, RACK/TAILLIGHT
-
278002-042 SCREW, CAPSCREW, CAP
-
280623-826 E, RINGE, RING
-
290623-850 T, NUTT, NUT
-
300606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
310623-269 CLIP, RETAININGCLIP, RETAINING
-
321606-819 LEVER, QUICK, RELEASE, BACKRESTLEVER, QUICK, RELEASE, BACKREST
-
330670-183 O-RINGO-RING
-
340623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
351606-772 RETAINER, HANDGRIP, PASSENGERRETAINER, HANDGRIP, PASSENGER
-
361606-684 HANDHOLD, PASSENGER (RIGHT)HANDHOLD, PASSENGER (RIGHT)
-
361606-685 HANDHOLD, PASSENGER (LEFT)HANDHOLD, PASSENGER (LEFT)
-
370609-559 ELEMENT, HANDWARMER, PASSENGERELEMENT, HANDWARMER, PASSENGER
-
381606-771 HANDGRIP, PASSENGER HANDHOLDHANDGRIP, PASSENGER HANDHOLD
-
390623-837 WASHER, FRICTIONWASHER, FRICTION
-
401606-688 LEVER, QUICK, RELEASE, HANDHOLDLEVER, QUICK, RELEASE, HANDHOLD
-
411606-238 DEFLECTOR, WIND (RIGHT)DEFLECTOR, WIND (RIGHT)
-
411606-239 DEFLECTOR, WIND (LEFT)DEFLECTOR, WIND (LEFT)
-
420686-701 HARNESS, HANDWARMER, PASSENGER (LEFT)HARNESS, HANDWARMER, PASSENGER (LEFT)
-
430623-842 WASHERWASHER
-
440623-838 WASHER, FRICTIONWASHER, FRICTION
-
458050-222 WASHERWASHER
-
460686-702 HARNESS, HANDWARMER, PASSENGER (RIGHT)HARNESS, HANDWARMER, PASSENGER (RIGHT)
-
474611-043 DECAL, WARNING, LATCH/PAYLOAD (FRENCH)DECAL, WARNING, LATCH/PAYLOAD (FRENCH)
-
484611-042 DECAL, WARNING, LATCH/PAYLOAD (ENGLISH)DECAL, WARNING, LATCH/PAYLOAD (ENGLISH)
