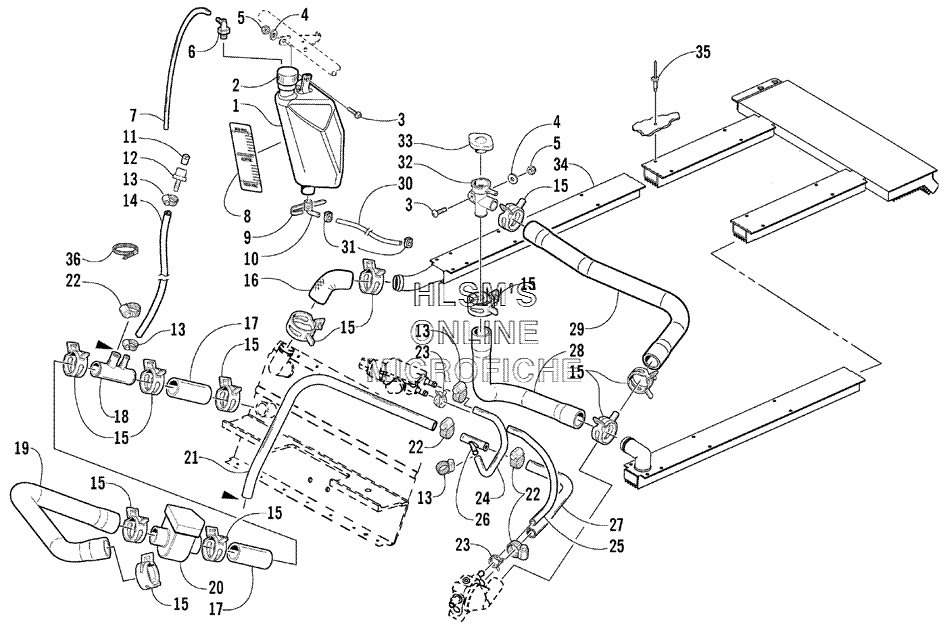

COOLING ASSY. для Arctic Cat 4-STROKE TOURING - 2002 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48050-217 WASHERWASHER
-
58040-366 NUT, LOCKNUT, LOCK
-
60670-242 FITTING, VENTFITTING, VENT
-
70610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
84611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
90670-289 TAPE, TEFLONTAPE, TEFLON
-
100670-075 FITTING, ELBOWFITTING, ELBOW
-
110623-976 PLUG, ADAPTERPLUG, ADAPTER
-
121670-303 ADAPTER, FITTINGADAPTER, FITTING
-
130623-373 CLAMP, HOSECLAMP, HOSE
-
140610-075 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
150623-736 CLAMP, HOSECLAMP, HOSE
-
160610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
170610-457 HOSE, COOLANT, T, FITTINGHOSE, COOLANT, T, FITTING
-
182606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
190610-453 HOSE, COOLANT, HEATER/ENGINEHOSE, COOLANT, HEATER/ENGINE
-
200609-182 HEATER, INLINEHEATER, INLINE
-
210610-486 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
220623-028 CLAMP, HOSECLAMP, HOSE
-
233006-128 CLAMP, HOSECLAMP, HOSE
-
240610-487 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
253006-235 HOSE, COOLANT, THROTTLE BODY/THERMOSTATHOSE, COOLANT, THROTTLE BODY/THERMOSTAT
-
262606-625 Y, FITTINGY, FITTING
-
270610-485 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
280610-452 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
290610-451 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
300610-015 HOSE (100 FT)HOSE (100 FT)
-
300610-016 HOSE (25 FT)HOSE (25 FT)
-
310124-045 CLAMP, HOSECLAMP, HOSE
-
320606-267 NECK, FILLERNECK, FILLER
-
332606-284 CAP, FILLER NECKCAP, FILLER NECK
-
341706-919 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
358060-706 RIVETRIVET
-
360123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
