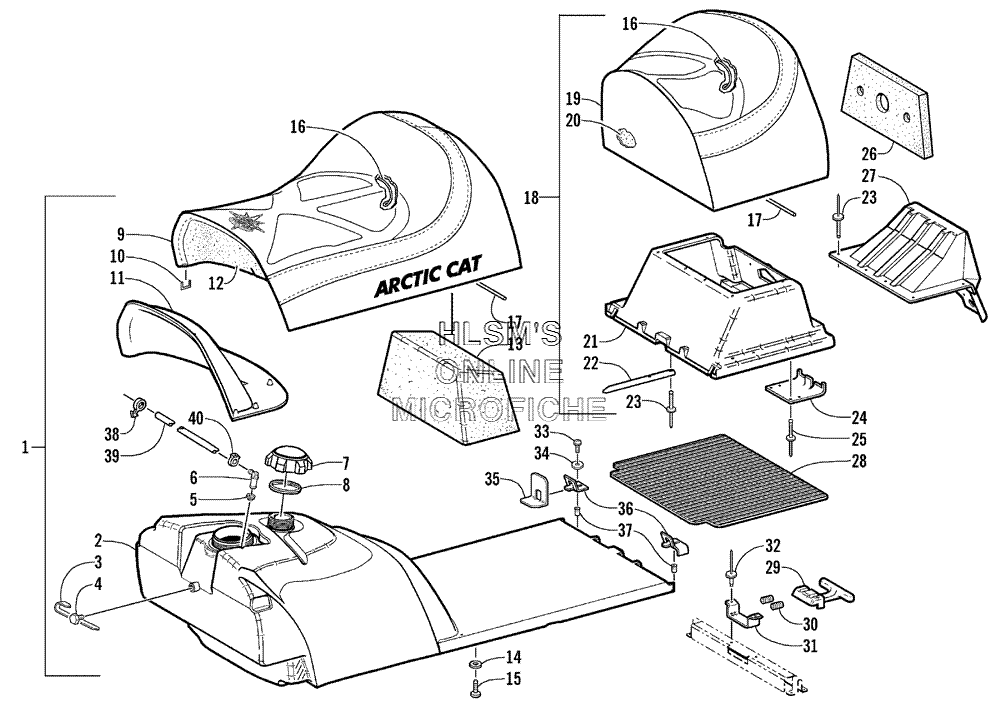

GAS TANK AND SEAT ASSY. для Arctic Cat 4-STROKE TOURING - 2002 года выпуска
-
№АртикулНазвание
-
241718-214 COMPLETE SEAT ASSY. (FRONT)COMPLETE SEAT ASSY. (FRONT)
-
241718-090 COMPLETE SEAT ASSY., PASSENGERCOMPLETE SEAT ASSY., PASSENGER
-
11718-214 COMPLETE SEAT ASSY. (FRONT) (INC. 2, 15 AND ONE NO. 16, 17)COMPLETE SEAT ASSY. (FRONT) (INC. 2, 15 AND ONE NO. 16, 17)
-
20770-589 TANK, GAS/SEAT, BASE (INC. 3, 8)TANK, GAS/SEAT, BASE (INC. 3, 8)
-
30670-289 TEFLON, TAPETEFLON, TAPE
-
40670-243 PLUG, GAS TANKPLUG, GAS TANK
-
51670-325 GROMMETGROMMET
-
61670-324 VENT, GAS TANKVENT, GAS TANK
-
70670-341 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
80109-733 SEAL, TANK CAPSEAL, TANK CAP
-
91706-160 COVER, SEAT (FRONT)COVER, SEAT (FRONT)
-
100624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
111606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
121706-158 FOAM, SEAT CUSHION (FRONT)FOAM, SEAT CUSHION (FRONT)
-
132606-133 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
148050-217 WASHERWASHER
-
150623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161606-150 WIRE, SEATWIRE, SEAT
-
170606-057 WIRE, SEATWIRE, SEAT
-
181718-090 COMPLETE SEAT ASSY., PASSENGER (INC. 10, 19, 27, AND ONE NO. 16, 17)COMPLETE SEAT ASSY., PASSENGER (INC. 10, 19, 27, AND ONE NO. 16, 17)
-
191706-161 COVER, SEAT, PASSENGERCOVER, SEAT, PASSENGER
-
201706-159 FOAM, SEAT, PASSENGERFOAM, SEAT, PASSENGER
-
212606-066 SEAT, BASE, PASSENGERSEAT, BASE, PASSENGER
-
222606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)BRACKET, HOLD, DOWN, SEAT (RIGHT)
-
222606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)BRACKET, HOLD, DOWN, SEAT (LEFT)
-
230623-853 RIVETRIVET
-
242606-161 PLATE, STRIKEPLATE, STRIKE
-
250623-778 RIVETRIVET
-
260617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
271606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
282606-180 PAD, RUBBERPAD, RUBBER
-
292606-159 HANDLE, BACKREST, LATCHHANDLE, BACKREST, LATCH
-
302606-154 SPRING, COMPRESSIONSPRING, COMPRESSION
-
312606-158 BRACKET, RETAINER, LATCHBRACKET, RETAINER, LATCH
-
328060-706 RIVETRIVET
-
338017-580 SCREW, MACHINESCREW, MACHINE
-
348050-222 WASHERWASHER
-
352606-268 GUARD, SEAT (RIGHT)GUARD, SEAT (RIGHT)
-
352606-269 GUARD, SEAT (LEFT)GUARD, SEAT (LEFT)
-
362606-156 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
-
362606-157 BRACKET, HOLD, DOWN, RECEIVER (LEFT)BRACKET, HOLD, DOWN, RECEIVER (LEFT)
-
370623-582 INSERTINSERT
-
380623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
390610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
390610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
400623-063 CLAMP, HOSECLAMP, HOSE
