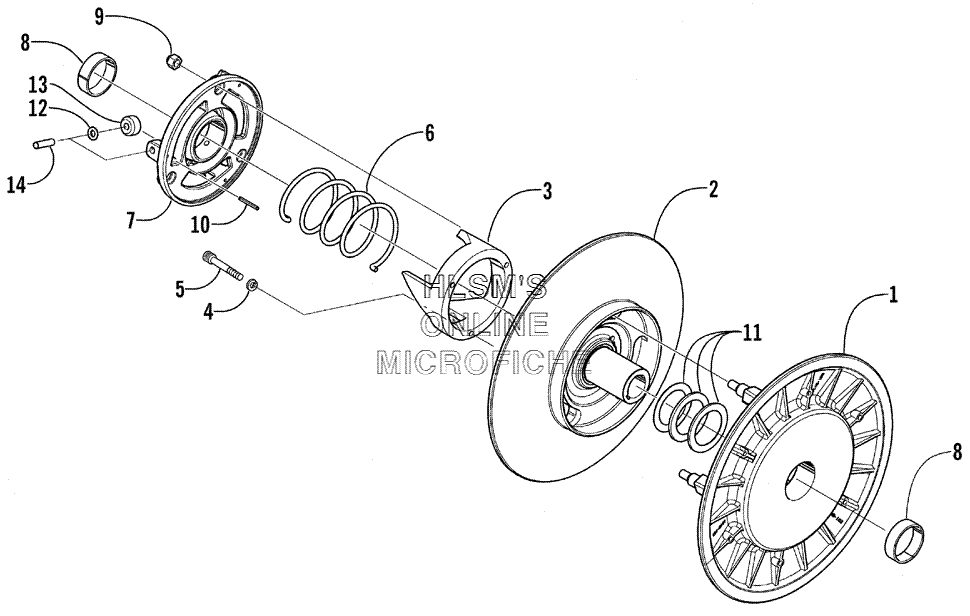

DRIVEN CLUTCH для Arctic Cat Z 440 (ES) - 2002 года выпуска
-
№АртикулНазвание
-
-0726-098 CLUTCH, DRIVEN ASSY.CLUTCH, DRIVEN ASSY.
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 8)SHEAVE, MOVABLE (INC. ONE NO. 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-002 BRACKET, TORQUE, 53°BRACKET, TORQUE, 53°
-
30148-222 BRACKET, TORQUE, 51° (OVER 5, 000 FT ALT.)BRACKET, TORQUE, 51° (OVER 5, 000 FT ALT.)
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60148-227 SPRING, DRIVEN CLUTCH (YELLOW)SPRING, DRIVEN CLUTCH (YELLOW)
-
70748-018 PLATE, ROLLER, ASSY. (INC. ONE NO. 8, 10, AND 12, 14)PLATE, ROLLER, ASSY. (INC. ONE NO. 8, 10, AND 12, 14)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
