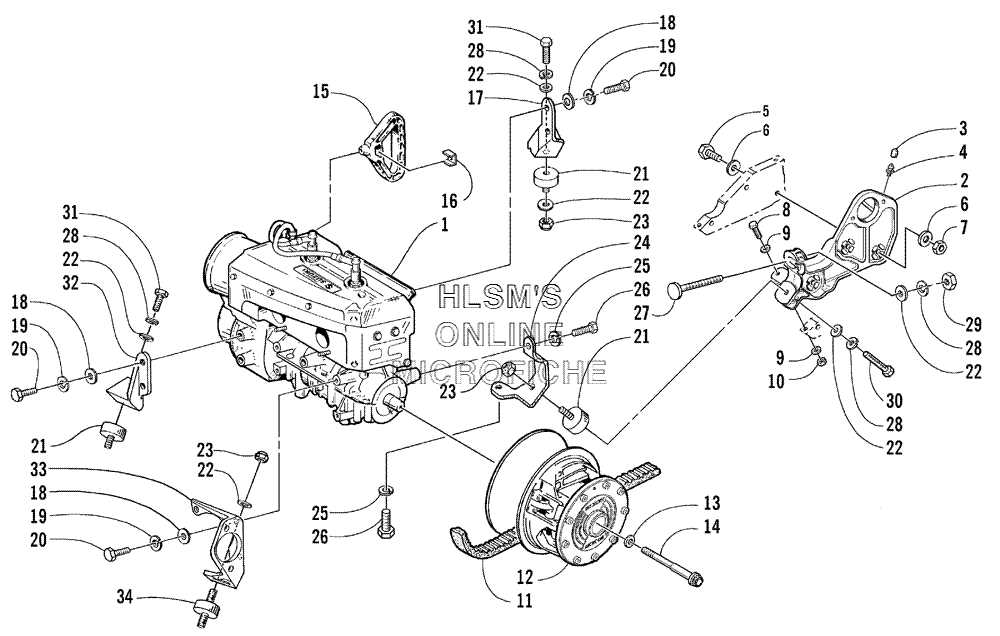

ENGINE AND RELATED PARTS для Arctic Cat Z 440 (ES) - 2002 года выпуска
-
№АртикулНазвание
-
10662-307 ENGINE, AS44A5ENGINE, AS44A5
-
20708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 3, 4)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 3, 4)
-
30623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
40623-899 FITTING, GREASEFITTING, GREASE
-
58002-225 SCREW, CAPSCREW, CAP
-
60623-044 WASHERWASHER
-
70623-026 NUT, LOCKNUT, LOCK
-
88002-041 SCREW, CAPSCREW, CAP
-
98050-222 WASHERWASHER
-
108040-366 NUT, LOCKNUT, LOCK
-
110627-021 BELT, DRIVEBELT, DRIVE
-
120725-301 CLUTCH, DRIVECLUTCH, DRIVE
-
130623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
140623-804 BOLT, CLUTCHBOLT, CLUTCH
-
150636-363 HANDLE, RECOILHANDLE, RECOIL
-
160606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
170708-048 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
188050-242 WASHERWASHER
-
198051-242 WASHER, LOCKWASHER, LOCK
-
208002-132 SCREW, CAPSCREW, CAP
-
210608-217 MOUNT, ENGINEMOUNT, ENGINE
-
228050-277 WASHERWASHER
-
238040-486 NUT, LOCKNUT, LOCK
-
240608-179 BRACKET, ENGINE MOUNTING (LEFT) REARBRACKET, ENGINE MOUNTING (LEFT) REAR
-
258051-332 WASHER, LOCKWASHER, LOCK
-
268002-402 SCREW, CAPSCREW, CAP
-
270608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
288051-277 WASHER, LOCKWASHER, LOCK
-
298042-486 NUTNUT
-
308002-226 SCREW, CAPSCREW, CAP
-
318002-222 SCREW, CAPSCREW, CAP
-
320708-050 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
330608-287 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
340608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
