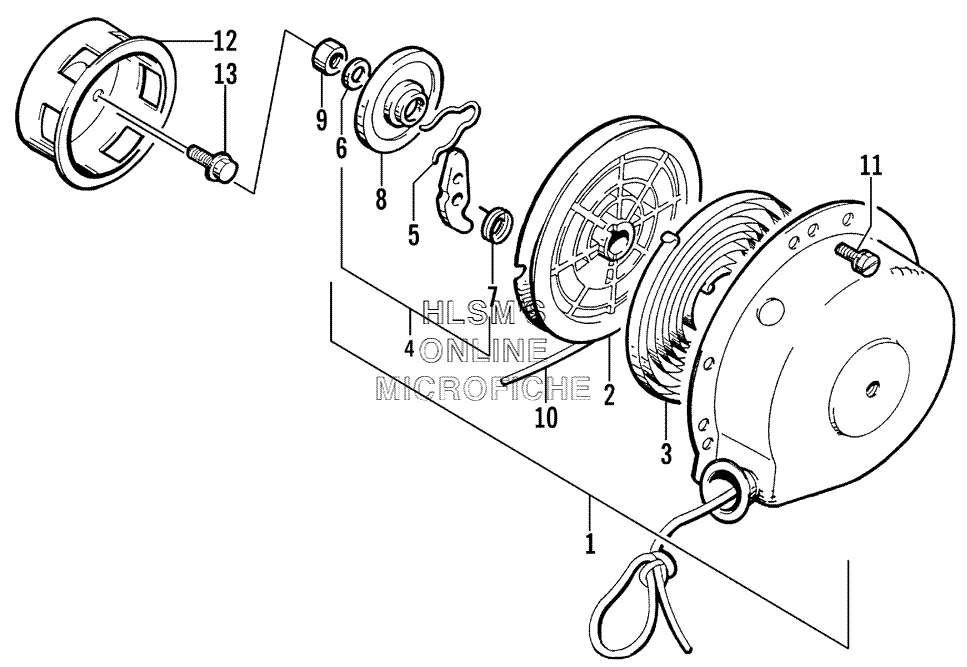

RECOIL STARTER для Arctic Cat Z 440 (ES) - 2002 года выпуска
-
№АртикулНазвание
-
13005-127 STARTER ASSY. (INC. 2, 10)STARTER ASSY. (INC. 2, 10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43004-729 RATCHET SET (INC. 5, 8)RATCHET SET (INC. 5, 8)
-
63003-397 WASHERWASHER
-
83005-128 PLATE, FRICTIONPLATE, FRICTION
-
93004-488 NUTNUT
-
103003-327 ROPE, STARTERROPE, STARTER
-
113004-383 BOLTBOLT
-
123005-531 PULLEY, STARTERPULLEY, STARTER
-
133004-341 BOLTBOLT
