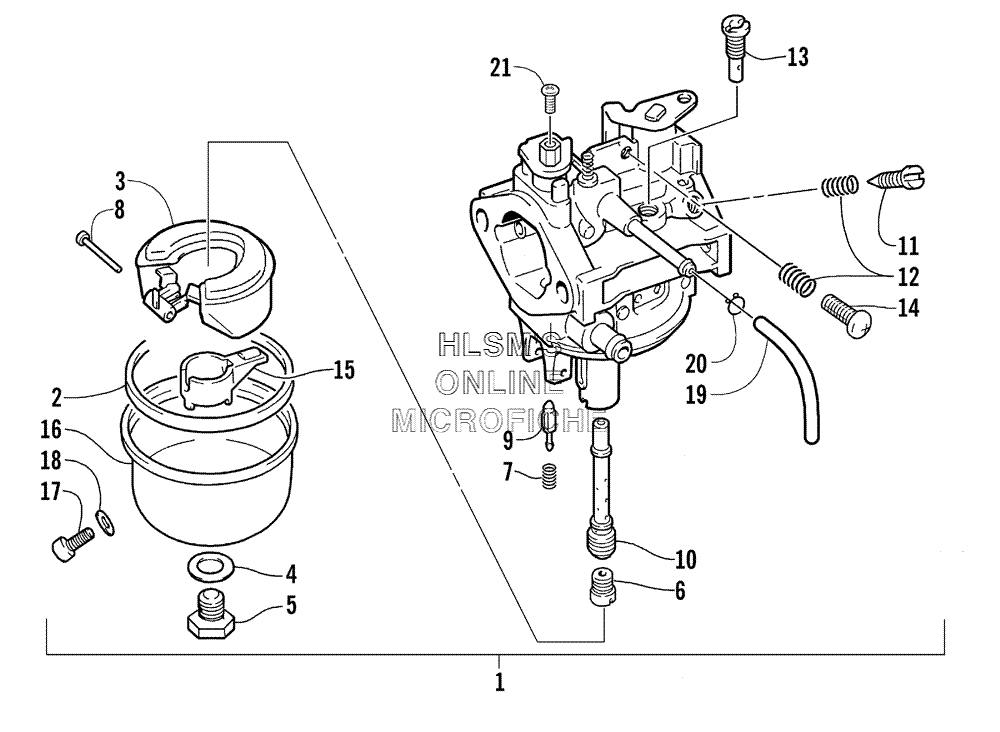

CARBURETOR для Arctic Cat ZR 120 - 2002 года выпуска
-
№АртикулНазвание
-
10694-028 CARBURETOR ASSY (INC. 2, 21)CARBURETOR ASSY (INC. 2, 21)
-
20691-423 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
30691-424 FLOATFLOAT
-
40691-624 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
50693-697 PLUG, DRAINPLUG, DRAIN
-
60694-032 MAIN JET (77.5)MAIN JET (77.5)
-
70691-428 SPRING, NEEDLE JETSPRING, NEEDLE JET
-
80693-536 PIN, FLOATPIN, FLOAT
-
90693-055 NEEDLE JETNEEDLE JET
-
100693-056 NOZZLENOZZLE
-
110691-102 ADJUSTER SCREW, PILOT AIRADJUSTER SCREW, PILOT AIR
-
120691-272 SPRINGSPRING
-
130694-033 PILOT JET (42.5)PILOT JET (42.5)
-
130693-538 PILOT JET (37.5)PILOT JET (37.5)
-
136506-261 PILOT JET (45)PILOT JET (45)
-
136506-262 PILOT JET (47.5)PILOT JET (47.5)
-
136506-263 PILOT JET,PILOT JET,
-
140693-315 ADJUSTER SCREW, IDLE SPEEDADJUSTER SCREW, IDLE SPEED
-
150691-426 RINGRING
-
160693-283 CHAMBER, FLOATCHAMBER, FLOAT
-
170693-284 SCREW, DRAINSCREW, DRAIN
-
180693-285 GASKET, DRAIN SCREWGASKET, DRAIN SCREW
-
190694-012 HOSE, GASLINEHOSE, GASLINE
-
200694-011 CLAMP, HOSECLAMP, HOSE
-
210694-025 SCREWSCREW
