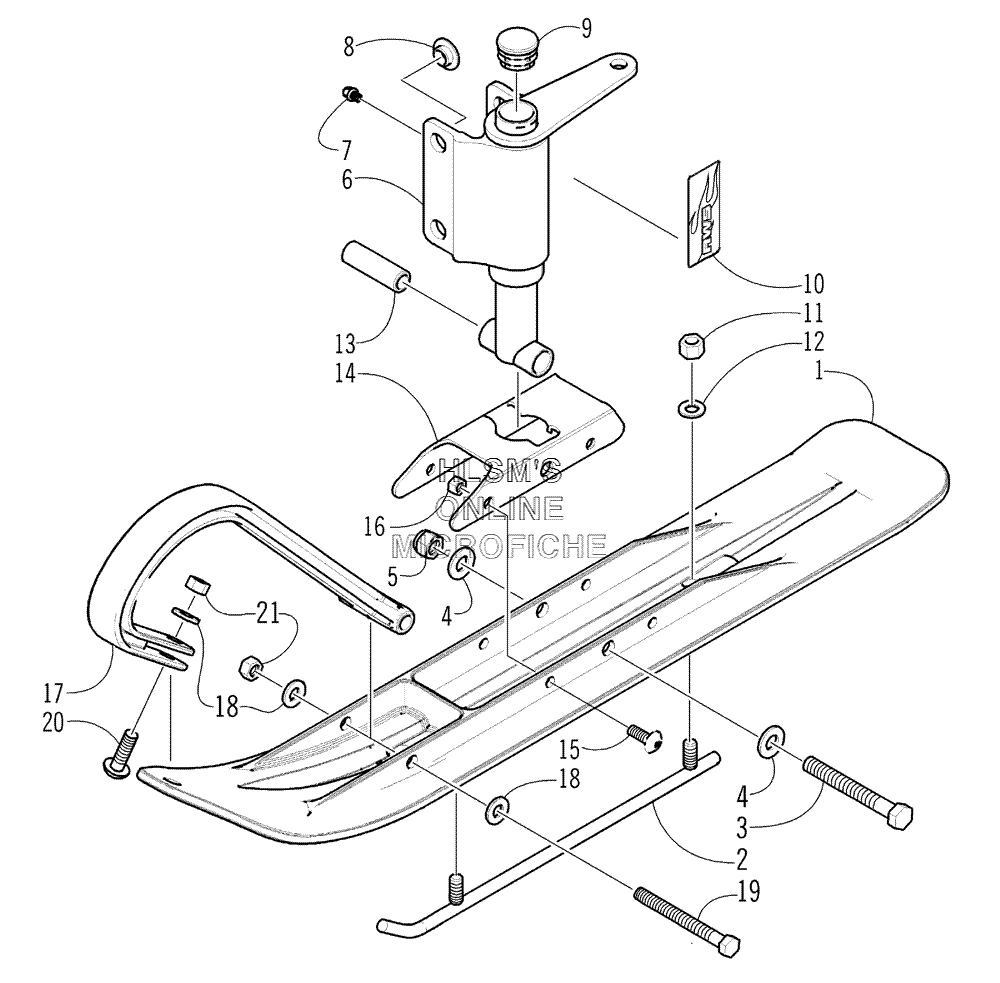

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 120 - 2002 года выпуска
-
№АртикулНазвание
-
11603-606 SKI, PLASTIC (GREEN)SKI, PLASTIC (GREEN)
-
20703-698 WEARBARWEARBAR
-
38002-231 SCREW, CAPSCREW, CAP
-
48050-277 WASHERWASHER
-
58040-486 NUT, LOCKNUT, LOCK
-
60703-834 SPINDLE (INC. 7, 8)SPINDLE (INC. 7, 8)
-
70623-010 FITTING, GREASEFITTING, GREASE
-
80603-647 INSERT, SPINDLEINSERT, SPINDLE
-
90623-831 CAP, SPINDLECAP, SPINDLE
-
104611-238 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
104611-239 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
118040-426 NUT, LOCKNUT, LOCK
-
128050-242 WASHERWASHER
-
131603-365 AXLE, SUSPENSIONAXLE, SUSPENSION
-
141603-598 SADDLE, SKISADDLE, SKI
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168041-366 NUT, LOCKNUT, LOCK
-
171603-594 HANDLE, SKIHANDLE, SKI
-
188050-247 WASHERWASHER
-
198002-141 SCREW, CAPSCREW, CAP
-
208017-672 SCREW, CAPSCREW, CAP
-
218041-426 NUT, LOCKNUT, LOCK
