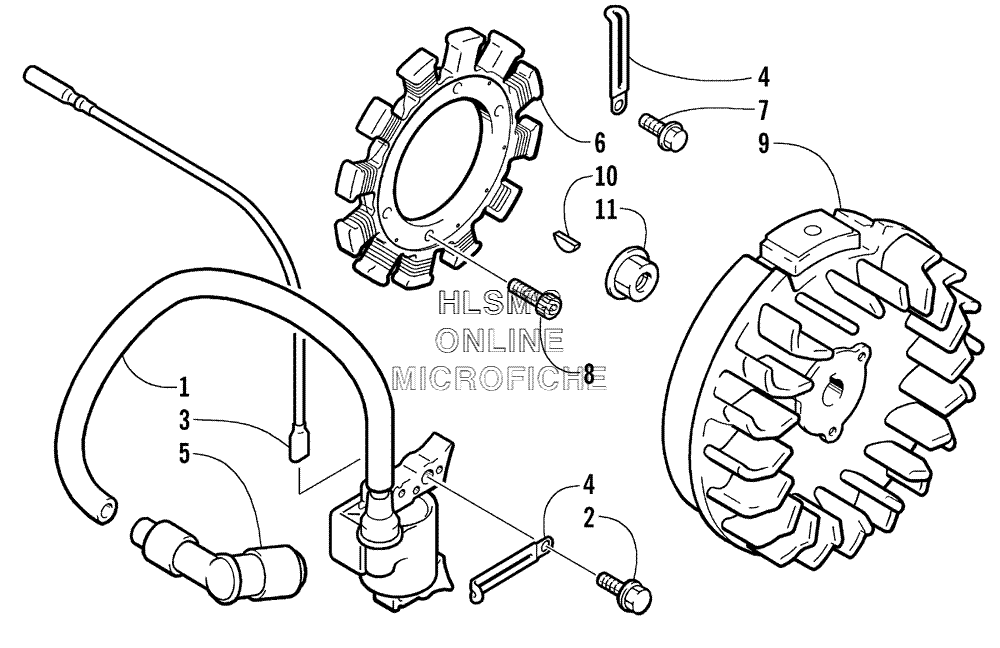

MAGNETO для Arctic Cat ZR 120 - 2002 года выпуска
-
№АртикулНазвание
-
10693-326 COIL, IGNITION, ASSYCOIL, IGNITION, ASSY
-
20693-242 BOLTBOLT
-
30693-263 WIRE, MAGNETO LEADWIRE, MAGNETO LEAD
-
43002-964 CLAMP, WIRECLAMP, WIRE
-
50691-322 CAP, SPARK PLUGCAP, SPARK PLUG
-
60694-029 STATORSTATOR
-
70693-241 BOLTBOLT
-
80694-023 BOLTBOLT
-
90694-030 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
103004-540 KEYKEY
-
113004-380 NUTNUT
