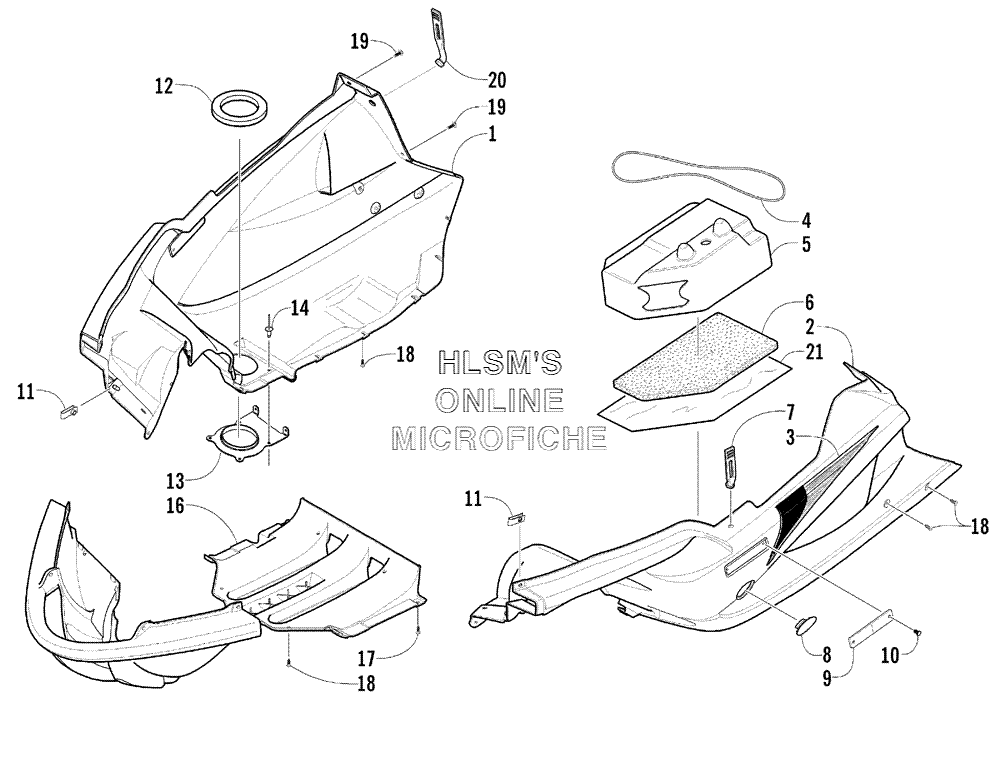

BELLY PAN ASSEMBLY для Arctic Cat ZR 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
11706-322 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-323 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
34611-494 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
34611-495 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
40602-437 SEALSEAL
-
52606-551 COVER, ELECTRICAL PANELCOVER, ELECTRICAL PANEL
-
60617-423 FOAM, ELECTRICAL PANELFOAM, ELECTRICAL PANEL
-
71606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
82606-350 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
90606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
100623-269 CLIP, RETAININGCLIP, RETAINING
-
111623-030 NUT, SPEEDNUT, SPEED
-
121612-408 SEAL, EXHAUSTSEAL, EXHAUST
-
131612-407 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
148061-508 RIVETRIVET
-
152606-823 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
162606-333 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
171623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
202606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
212606-851 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
220623-771 U, NUTU, NUT
