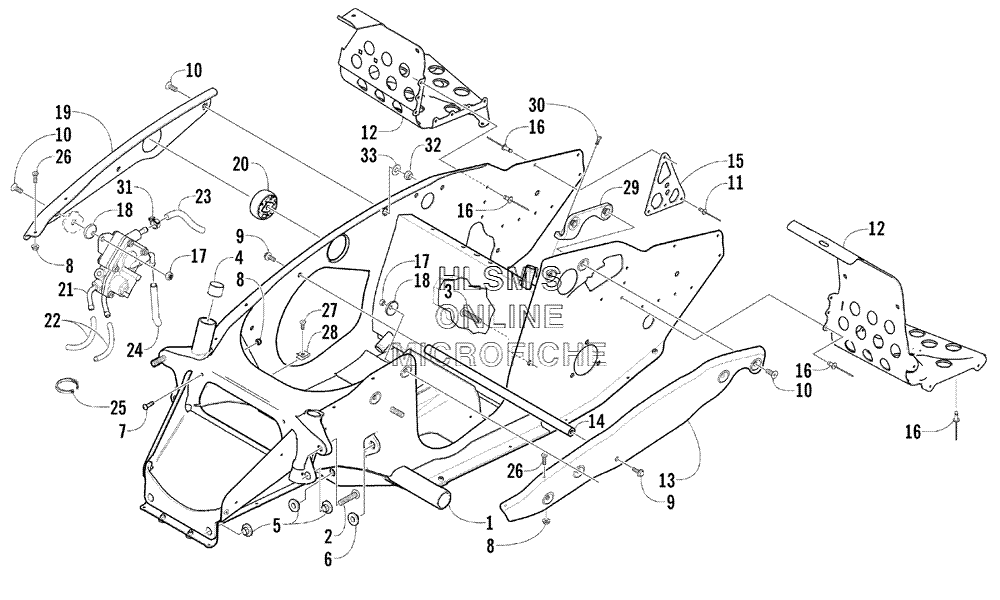

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat ZR 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10707-637 CHASSIS, ASSEMBLY (INC. 2, 7 AND TWO NO. 8)CHASSIS, ASSEMBLY (INC. 2, 7 AND TWO NO. 8)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
40675-161 BEARINGBEARING
-
50607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
60607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
70623-182 SCREW, MACHINESCREW, MACHINE
-
80123-430 NUT, LOCKNUT, LOCK
-
98002-129 SCREW, CAPSCREW, CAP
-
100623-962 SCREW, FLAT HEADSCREW, FLAT HEAD
-
110623-341 RIVETRIVET
-
122606-334 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
122606-335 FOOTREST (LEFT)FOOTREST (LEFT)
-
132606-855 BRACE, SIDE PLATEBRACE, SIDE PLATE
-
142606-695 CROSSBRACE, SIDE PLATECROSSBRACE, SIDE PLATE
-
152606-620 PLATE, BACKINGPLATE, BACKING
-
160623-282 RIVETRIVET
-
178041-366 NUT, LOCKNUT, LOCK
-
180623-943 WASHER, CUPWASHER, CUP
-
192606-595 GUSSET, ENGINE MOUNTGUSSET, ENGINE MOUNT
-
200608-364 MOUNT, ENGINEMOUNT, ENGINE
-
211670-269 PUMP, FUELPUMP, FUEL
-
220610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
220610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
230610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
230610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
240610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
250123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
260623-739 SCREW, CAPSCREW, CAP
-
270623-212 SCREWSCREW
-
280623-757 U, NUTU, NUT
-
292706-068 BRACE, SIDE PLATE (RIGHT)BRACE, SIDE PLATE (RIGHT)
-
292706-075 BRACE, SIDE PLATE (LEFT)BRACE, SIDE PLATE (LEFT)
-
300623-506 SCREWSCREW
-
310124-045 CLAMP, HOSECLAMP, HOSE
-
328040-366 NUT, LOCKNUT, LOCK
-
338050-222 WASHERWASHER
