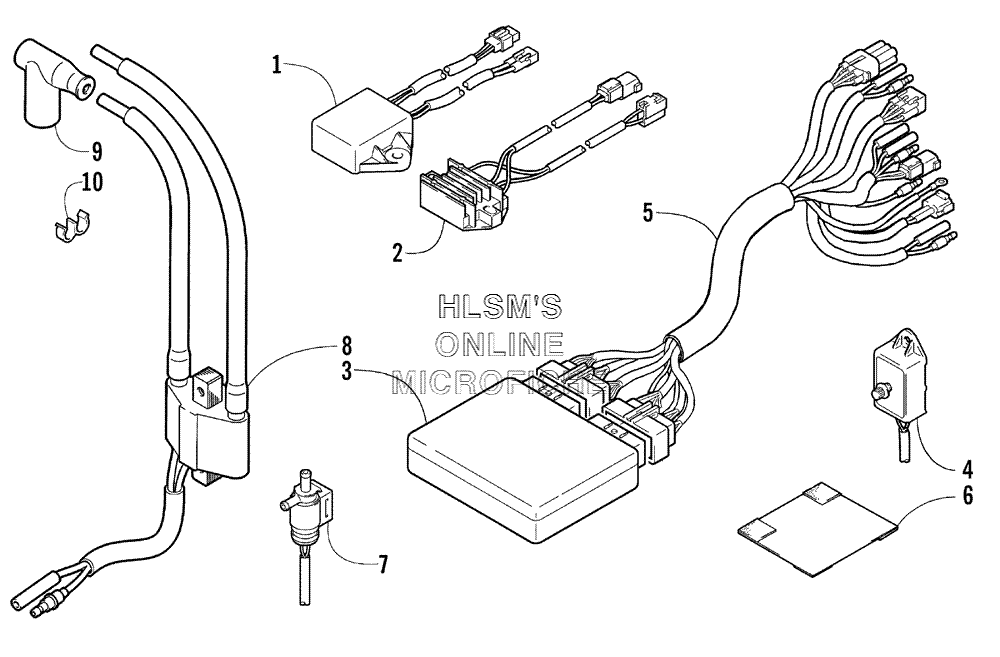

ELECTRICAL для Arctic Cat ZR 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
13006-377 CONDENSER, EXHAUST VALVECONDENSER, EXHAUST VALVE
-
23006-378 REGULATOR, EXHAUST VALVEREGULATOR, EXHAUST VALVE
-
33006-365 CDICDI
-
43005-932 UNIT, CONTROL, TIMINGUNIT, CONTROL, TIMING
-
50686-840 HARNESS, CDIHARNESS, CDI
-
63003-474 COVER, CONNECTORCOVER, CONNECTOR
-
73006-379 SOLENOID, VALVESOLENOID, VALVE
-
83006-381 COIL, IGNITIONCOIL, IGNITION
-
93003-737 CAP, SPARK PLUGCAP, SPARK PLUG
-
103005-387 CLIPCLIP
